John Deere 8630 Tractor Parts
John Deere 8630 Tractor parts in stock. Quality OEM and aftermarket replacement parts with fast shipping and competitive prices.
The John Deere 8630, manufactured from 1978 to 1981, was a powerful and innovative agricultural tractor. Featuring a robust 270 horsepower diesel engine, this tractor delivered significant PTO horsepower. Its articulated design and advanced features made it a popular choice for farmers tackling demanding tasks in large-scale operations.
About the 8630
The John Deere 8630 was introduced in 1978 as part of the company's line of high-horsepower, four-wheel drive articulated tractors. Production continued until 1981. This model was powered by a John Deere 466 cu in (7.6 L) 6-cylinder turbocharged diesel engine producing approximately 270 horsepower. It had a powershift transmission offering 8 forward and 4 reverse speeds. The PTO horsepower was rated at around 225 HP, and offered a 1000 RPM PTO speed. The hydraulic system had a capacity of around 30 GPM, supplying power for implement operation, typically with two to three remote valves. The 3-point hitch was a Category III, capable of lifting substantial implements. This tractor was commonly used for row crop farming, tillage operations, and large-scale hay production. It was distinguished by its articulated steering, which provided excellent maneuverability compared to traditional front-wheel assist tractors. The 8630 represented a significant advancement in tractor technology at the time, offering farmers increased power and efficiency.
8630 Specifications
| Engine | John Deere 466 cu in (7.6 L) 270 HP Diesel |
|---|---|
| PTO HP | 225 HP @ 1000 RPM |
| Transmission | Powershift 8 forward/4 reverse |
| Hydraulics | 30 GPM, 2-3 remotes |
| 3-Point Hitch | Category III, 7,900 lbs lift capacity |
| Fuel Capacity | 136 gallons |
| Weight | 24,000 lbs |
| Years Produced | 1978-1981 |
8630 Maintenance Tips
- Engine Oil & Filter: Change engine oil and filter every 250 hours of operation, using a high-quality oil that meets John Deere specifications.
- Hydraulic System: Regularly inspect hydraulic fluid levels and filter condition. Change hydraulic fluid and filter every 500-1000 hours, depending on operating conditions, to prevent contamination and maintain performance.
- Fuel System: Use clean, high-quality diesel fuel. Inspect and replace fuel filters regularly (every 250 hours) to prevent fuel system issues. Drain water from the fuel tank regularly to avoid corrosion and injector problems.
- Seasonal Storage: Before storing the tractor for the off-season, drain and refill the fuel tank with fresh fuel and add a fuel stabilizer. Change engine oil and filter, and grease all lubrication points. Disconnect the battery and store it in a cool, dry place.
8630 History & Background
The John Deere 8630 was introduced in 1978 as a high-horsepower articulated 4WD tractor. It represented a step forward in tractor design, offering farmers enhanced power and maneuverability. Its success helped establish John Deere as a leader in the large agricultural tractor market.
Frequently Asked Questions
Which coolant filter is recommended for the John Deere 8630?
The RE11992 - Filter, Coolant is a suitable replacement for the John Deere 8630.
What PTO clutch disc fits the John Deere 8630?
For the John Deere 8630, the RE23286 - Disc, PTO Clutch is an appropriate replacement part.
Which brake valve overhaul kit is recommended for the John Deere 8630?
The AR31946 - Brake Valve Overhaul Kit is a suitable component for maintaining the brake system on your John Deere 8630.
What are common parts needed for the 8630?
For routine maintenance and wear, common parts for the John Deere 8630 include the RE23286 - Disc, PTO Clutch, R110464 - Brake Pads, Metallic, and the AR95827 - Disc, Transmission Clutch (22 Holes). Other frequently replaced items are R51936 - Grommet, Injector Lines, and the AL78021 - Mirror Head; LH/RH Outer Rear View for visibility.

T20328 - Oil Filler Cap Gasket
SKU: T20328
48 in stock

RE40476 - Piston Liner Kit
SKU: RE40476
13 in stock

RE507076 - Engine Oil Pump
SKU: RE507076
43 in stock

RE37417 - Upper Gasket Set
SKU: RE37417
9 in stock

RE37416 - Overhaul without Seals Gasket Set
SKU: RE37416
1 in stock

RE34009 - Head Gasket
SKU: RE34009
2 in stock

RE20291 - Piston Liner Kit
SKU: RE20291
18 in stock

JD8210 - TIMKEN CUP
SKU: JD8210
97 in stock

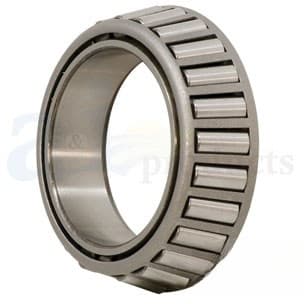

JD8939 - Taper Roller Bearing Cone
SKU: JD8939
20 in stock

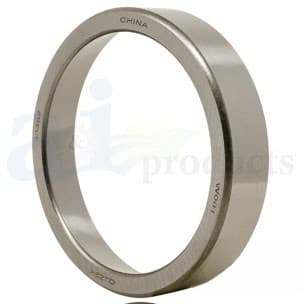

JD7416 - Tapered Roller Bearing CUP
SKU: JD7416
3 in stock

U12331 - Durometer 75 (4/Pack) .139" Thickness O-Ring; 2.734" ID X 3.012" OD
SKU: U12331
356 in stock

U10289 - Durometer 75 (10/Pack) .139" Thick O-Ring; 1.484" ID X 1.762" OD
SKU: U10289
910 in stock

R77551 - Durometer 75 (12/Pack) .070" Thick O-Ring; .208" ID X .348" OD
SKU: R77551
1620 in stock

R72654 - Snap; 25/Pack Ring
SKU: R72654
475 in stock

R72653 - Snap; 50/Pack Ring
SKU: R72653
2800 in stock

R72328 - Durometer 75 (5/Pack) .103" Thick O-Ring; .737" ID X .943" OD
SKU: R72328
330 in stock

R71732 - Durometer 75 (5/Pack) O-Ring; 1.234" ID X 1.512" OD X .139" Thick
SKU: R71732
Out of stock

R69667 - Durometer 90 (4/Pack) O-Ring; .734" ID X 1.012" OD X .139" Thick
SKU: R69667
468 in stock

R62070 - Durometer 70 (5/Pack) .070" Thick O-Ring; .989" ID X 1.129" OD
SKU: R62070
140 in stock

R56757 - Durometer 75 (2/Pack) .139" Thick O-Ring; 3.609" ID X 3.887" OD
SKU: R56757
202 in stock

R56751 - Durometer 75 (2/Pack) O-Ring; .924" ID X 1.156" OD X .116" Thick
SKU: R56751
258 in stock

R51603 - Durometer 70 (10/Pack) O-Ring; .612" ID X .818" OD X .103" Thick
SKU: R51603
240 in stock

R29463 - Durometer 75 (5/Pack) .139" Thick O-Ring; 1.234" ID X 1.512" OD
SKU: R29463
280 in stock

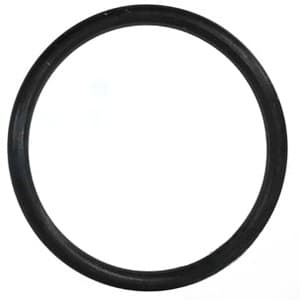

R27928 - Durometer 75 (25/Pack) .070" Thick O-Ring; .926" ID X 1.066" OD
SKU: R27928
75 in stock
