John Deere 7700 Tractor Parts
Find parts for your John Deere 7700 Tractor. We stock OEM and quality aftermarket replacements ready to ship.
The John Deere 7700, manufactured from 1972 to 1977, was a popular choice among farmers for its reliability and power. Powered by a robust John Deere diesel engine producing around 110 horsepower, this tractor delivered dependable performance. With a PTO horsepower of approximately 95, the 7700 was well-suited for a variety of agricultural tasks, making it a versatile workhorse in the field.
About the 7700
The John Deere 7700 was introduced in 1972 as part of the John Deere 'Sound-Gard' tractor line, replacing the older 4020 and 4320 models. Production continued until 1977. The 7700 is equipped with a John Deere 6.4L (390 cu in) 6-cylinder diesel engine, producing approximately 110 engine horsepower. Its PTO horsepower is rated at around 95. Transmission options included a Quad-Range transmission (16 forward and 6 reverse speeds) or a Syncro-Range transmission (8 forward and 2 reverse). The tractor features a standard 540/1000 RPM independent PTO. The hydraulic system provides a flow rate of approximately 27 GPM to power implements and attachments. It features a Category II 3-point hitch, offering a lift capacity of around 5,500 lbs. Common farming applications for the 7700 included row crop operations like planting and cultivating, hay production, livestock feeding, and light tillage work. The Sound-Gard cab, a significant upgrade over previous models, provided operators with a quieter and more comfortable working environment, distinguishing it from earlier John Deere tractors.
7700 Specifications
| Engine | John Deere 6.4L 110 HP Diesel |
|---|---|
| PTO HP | 95 HP @ 540/1000 RPM |
| Transmission | Quad-Range (16F/6R) or Syncro-Range (8F/2R) |
| Hydraulics | 27 GPM, 2 remotes |
| 3-Point Hitch | Category II, 5,500 lbs lift capacity |
| Fuel Capacity | 45 gallons |
| Weight | 11,240 lbs |
| Years Produced | 1972-1977 |
7700 Maintenance Tips
- Check engine oil levels regularly and change the oil and filter every 250 hours of operation using the correct oil specification.
- Inspect and maintain the hydraulic system, ensuring clean fluid and replacing filters according to the manufacturer's recommendations. Periodically check hydraulic hoses and fittings for leaks or damage.
- Use clean, high-quality fuel and replace the fuel filter every 500 hours to prevent fuel system problems. Treat fuel with stabilizer during seasonal storage.
- Before storing the tractor for the winter, drain and flush the cooling system, add antifreeze, and grease all lubrication points. Disconnect the battery and store it in a cool, dry place.
7700 History & Background
The John Deere 7700 was launched in 1972 as part of the new generation of 'Sound-Gard' tractors, prioritizing operator comfort and efficiency. While there were no major redesigns during its production run (1972-1977), the 7700 solidified John Deere's position as a leader in agricultural tractor technology by offering improved ergonomics and powerful performance for the time.
Frequently Asked Questions
Which fuel pump is recommended for the John Deere 7700?
The recommended fuel lift transfer pump for the John Deere 7700 is the RE27667 - Pump, Fuel Lift Transfer.
What replacement PTO clutch disc fits the John Deere 7700?
A suitable replacement PTO clutch disc for the John Deere 7700 is the RE23286 - Disc, PTO Clutch.
What fuel/water separator filter is recommended for the John Deere 7700?
The recommended fuel/water separator filter for the John Deere 7700 is the RE62418 - Filter, Separator, Fuel/Water.
What are common replacement parts for the John Deere 7700?
Common replacement parts for the John Deere 7700 include the VPK1551 - Hydraulic Filter, RE520036 - Seal, Rear Crankshaft, AL78021 - Mirror Head; LH/RH Outer Rear View, RE35512 - Disc, Clutch, R51936 - Grommet, Injector Lines, and R136239 - Bulb, Light; GE888, 50 Watt.

T20328 - Oil Filler Cap Gasket
SKU: T20328
48 in stock

RE520036 - Rear Crankshaft Seal
SKU: RE520036
236 in stock

RE27667 - Fuel Lift Transfer Pump
SKU: RE27667
2834 in stock

T20129 - Valve Stem Cap
SKU: T20129
155 in stock

T20077 - Valve Keeper
SKU: T20077
1248 in stock

RG23551 - Crankshaft
SKU: RG23551
4 in stock

RE62776 - Exhaust Manifold; Inner Gasket
SKU: RE62776
1106 in stock

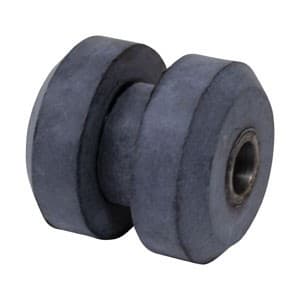

RE60721 - Engine Mount Isolator
SKU: RE60721
197 in stock

RE60720 - Engine Mount Isolator
SKU: RE60720
217 in stock

RE60294 - Piston Liner Kit
SKU: RE60294
26 in stock

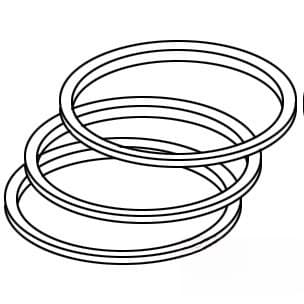

RE57517 - Piston Rings
SKU: RE57517
29 in stock

RE57054 - Camshaft W/ Tappets
SKU: RE57054
30 in stock

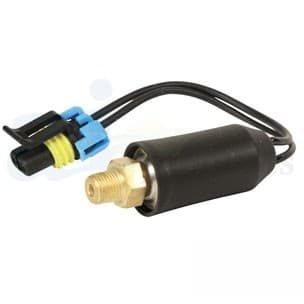

RE55145 - Engine Oil Pressure Switch
SKU: RE55145
16 in stock

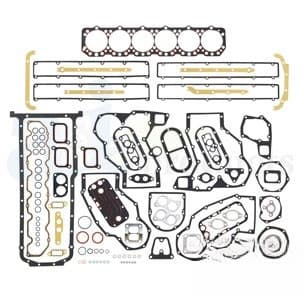

RE524640 - Overhaul without Seals Gasket Set
SKU: RE524640
12 in stock

RE52109 - Injector
SKU: RE52109
134 in stock

RE508317 - W/ Adjusting Screw Rocker Arm
SKU: RE508317
64 in stock

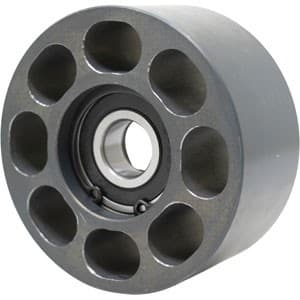

RE505265 - Roller Idler
SKU: RE505265
78 in stock

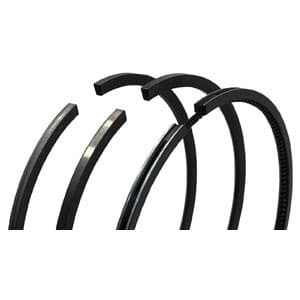

RE48380 - Piston Rings
SKU: RE48380
37 in stock

RE47336G - Head Gasket
SKU: RE47336G
15 in stock

RE47336 - Head Gasket
SKU: RE47336
15 in stock

RE42740 - Turbocharger
SKU: RE42740
57 in stock

RE40048 - Exhaust Clamp
SKU: RE40048
80 in stock

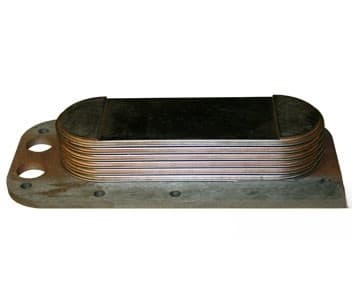

RE36367 - Oil Cooler
SKU: RE36367
25 in stock

RE30160 - Injector
SKU: RE30160
204 in stock
