John Deere 6430 Tractor Parts
Shop John Deere 6430 Tractor parts. From filters and fluids to blades and belts, we carry the replacements you need to keep running.
The John Deere 6430 tractor, manufactured from 2007 to 2012, was a popular choice for farmers needing a versatile and reliable machine. Powered by a John Deere PowerTech 4.5L diesel engine producing approximately 115 horsepower, it delivered ample power for various tasks. Its robust PTO, rated around 95 horsepower, made it well-suited for operating implements like mowers and balers, contributing to its widespread adoption in hay production and general farm work.
About the 6430
The John Deere 6430 was introduced in 2007 as part of the John Deere 6030 series, replacing earlier models and incorporating improved technology and operator comfort. Production continued until 2012. The heart of the 6430 is the John Deere PowerTech 4.5L four-cylinder diesel engine, delivering a rated power of approximately 115 horsepower. This engine features a turbocharged design for enhanced performance and fuel efficiency. Transmission options included the PowrQuad Plus, AutoQuad Plus, and CommandQuad Plus transmissions, providing a range of gear options and operating modes. The PTO horsepower is around 95 hp, available in both 540 and 1000 RPM configurations. The hydraulic system boasts a capacity of approximately 29 GPM, supporting multiple remote valves for implement control. It is equipped with a Category II 3-point hitch, offering a lift capacity of around 6,700 lbs. The 6430 was frequently used in row crop operations, hay production, livestock management, and light tillage applications. Compared to other models in the 6030 series, the 6430 occupied a mid-range position, balancing power and maneuverability, making it a well-rounded tractor for diverse farming needs.
6430 Specifications
| Engine | John Deere PowerTech 115 HP 4.5L Diesel |
|---|---|
| PTO HP | 95 HP @ 540/1000 RPM |
| Transmission | PowrQuad Plus/AutoQuad Plus/CommandQuad Plus Multiple Speeds |
| Hydraulics | 29 GPM, Up to 3 remotes |
| 3-Point Hitch | Category II, 6700 lbs lift capacity |
| Fuel Capacity | 42.3 gallons |
| Weight | 11,067 lbs |
| Years Produced | 2007-2012 |
6430 Maintenance Tips
- Engine Oil and Filter: Change the engine oil and filter every 250 hours using the recommended John Deere oil specification (e.g., John Deere Plus-50 II) to ensure optimal engine performance and longevity.
- Hydraulic System: Regularly check the hydraulic fluid level and inspect for leaks. Change the hydraulic filters every 500 hours to prevent contamination and maintain hydraulic system efficiency.
- Fuel System: Use clean, high-quality diesel fuel and regularly check/replace the fuel filters to prevent fuel system issues. Drain water from the fuel tank periodically to avoid corrosion and injector problems.
- Seasonal Storage: Before storing the tractor for extended periods, stabilize the fuel, change the engine oil, grease all fittings, and disconnect the battery to prevent corrosion and ensure easy starting upon reactivation.
6430 History & Background
The John Deere 6430 was introduced in 2007 as part of the 6030 series, marking an evolution in John Deere's utility tractor lineup. It offered improved engine technology and operator comfort compared to its predecessors. This model played a significant role in modern farming, providing a versatile solution for a variety of tasks.
Frequently Asked Questions
Which water pump fits the John Deere 6430?
For the John Deere 6430, the RE546918 - Pump, Water is a suitable replacement.
What PTO clutch disc is recommended for the John Deere 6430?
The RE23286 - Disc, PTO Clutch is an appropriate replacement part for the 6430 model.
Which fuel/water separator filter is suitable for the John Deere 6430?
The RE546336 - Filter, Separator, Fuel/Water is a reliable option for the John Deere 6430.
What are some common replacement parts for the John Deere 6430?
Common replacement parts for the John Deere 6430 include the T20006 - Gasket, Exhaust Manifold, AL156090 - Tensioner, Belt, RE516553 - Seal Kit, Fuel Filter, RE35512 - Disc, Clutch, L214634 - Filter, Cab Air, Recirculation, and R136239 - Bulb, Light; GE888, 50 Watt.

RE521756 - Engine Oil Pump
SKU: RE521756
16 in stock

RE519115 - Valve; Intake/Exhaust Seal
SKU: RE519115
290 in stock

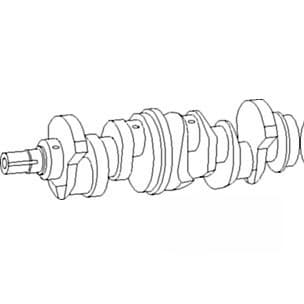

RE506195 - Taper Nose Crankshaft
SKU: RE506195
4 in stock

T20073 - Camshaft Follower
SKU: T20073
131 in stock

T20006 - Exhaust Manifold Gasket
SKU: T20006
834 in stock

RE68345 - Fuel Lift Pump
SKU: RE68345
87 in stock

RE66153 - Fuel Transfer Pump
SKU: RE66153
450 in stock

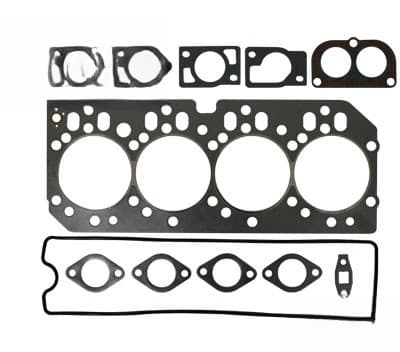

RE66082 - Upper Gasket Set
SKU: RE66082
42 in stock

RE65912 - Thrust (.010") Bearing
SKU: RE65912
73 in stock

RE65911 - Main (.010") Bearing
SKU: RE65911
721 in stock

RE65909 - Connecting Rod (.010") Bearing
SKU: RE65909
79 in stock

RE65908B - Connecting Rod (.020") Bearing
SKU: RE65908B
8 in stock

RE65908 - Connecting Rod (Std) Bearing
SKU: RE65908
7182 in stock

RE65836 - Water Temp Sender Switch
SKU: RE65836
71 in stock

RE65168B - Thrust (.020") Bearing
SKU: RE65168B
14 in stock

RE65168 - Thrust (Std) Bearing
SKU: RE65168
627 in stock

RE65165 - Main (Std) Bearing
SKU: RE65165
6921 in stock

RE59810 - Front Crankshaft Seal
SKU: RE59810
61 in stock

RE59298 - 9 Plate Engine Oil Cooler
SKU: RE59298
7 in stock

RE59296 - 5 Plate Engine Oil Cooler
SKU: RE59296
57 in stock

RE56690 - 7 Plate Engine Oil Cooler
SKU: RE56690
Out of stock

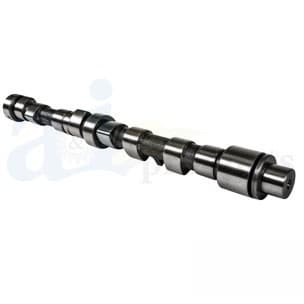

RE56375 - Camshaft
SKU: RE56375
9 in stock

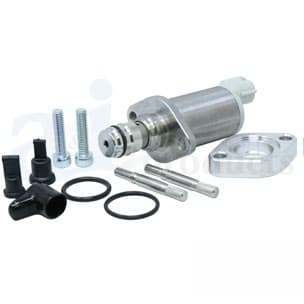

RE560091 - Fuel Suction Control Valve
SKU: RE560091
114 in stock

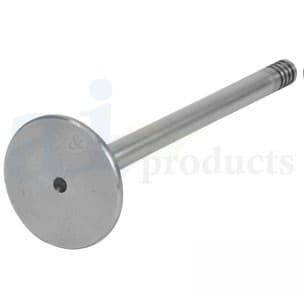

RE557891 - Exhaust; 30° Valve
SKU: RE557891
818 in stock
