John Deere 6400 Tractor Parts
Replacement parts for the John Deere 6400 Tractor. Browse our selection of OEM and aftermarket parts — filters, belts, hydraulics, electrical, and more.
The John Deere 6400, produced from 1993 to 1997, was a popular and versatile utility tractor in the John Deere lineup. Powered by a reliable John Deere 4.5L diesel engine producing around 85 horsepower, the 6400 offered a PTO horsepower rating that made it suitable for a wide range of farm tasks. Farmers appreciated its durability, ease of use, and ability to handle demanding fieldwork.
About the 6400
The John Deere 6400 was introduced in 1993 as part of the John Deere 6000 series tractors, a line known for their modern design and improved performance compared to previous models. Production continued through 1997. The tractor features a John Deere 4.5L (4530 cc, 276.4 cu-in) four-cylinder diesel engine, delivering approximately 85 engine horsepower. The standard transmission was a SyncroPlus transmission offering 12 forward and 4 reverse gears. A PowrQuad transmission with 16 forward and 16 reverse gears was also available as an option. The PTO horsepower is rated at approximately 75 HP, with options for both 540 and 1000 RPM PTO speeds, enhancing its versatility. Hydraulic capacity is around 16.4 GPM, with options for two or three remote valves. The 3-point hitch is a Category II, providing a lift capacity of approximately 5,291 lbs. The John Deere 6400 was commonly used in row crop operations, hay production, livestock management, and tillage tasks. It was distinguished from other models in the 6000 series by its horsepower rating and specific features, offering a balance of power and maneuverability.
6400 Specifications
| Engine | John Deere 85 HP 4.5L Diesel |
|---|---|
| PTO HP | 75 HP @ 540/1000 RPM |
| Transmission | SyncroPlus 12F/4R, PowrQuad 16F/16R |
| Hydraulics | 16.4 GPM, 2-3 remotes |
| 3-Point Hitch | Category II, 5291 lbs |
| Fuel Capacity | 37 gallons |
| Weight | 9612 lbs |
| Years Produced | 1993-1997 |
6400 Maintenance Tips
- Change engine oil and filter every 250 hours of operation using the recommended John Deere oil specification. Regularly inspect the air filter and clean or replace it as needed to prevent engine damage.
- Inspect hydraulic fluid levels and check for leaks regularly. Replace hydraulic filters according to the manufacturer's recommendations, typically every 500 hours.
- Use clean, high-quality diesel fuel and add a fuel stabilizer if the tractor will be stored for extended periods. Check fuel filters regularly and replace as needed.
- Before seasonal storage, drain fluids, grease all fittings, and store the tractor in a dry, covered location to prevent rust and corrosion. Consider using a battery maintainer to prolong battery life.
6400 History & Background
The John Deere 6400 was launched in 1993 as a key part of the 6000 series, representing a significant step forward in tractor design and technology for John Deere. It didn't undergo major redesigns during its production run, maintaining its core features and specifications. Its popularity cemented its place as a reliable and efficient utility tractor in agricultural history.
Frequently Asked Questions
Which main bearing set fits the John Deere 6400?
For the John Deere 6400, the standard main bearing set recommended is RE27352 - Bearing, Main (Std).
What PTO clutch disc is suitable for the John Deere 6400?
The appropriate PTO clutch disc for the John Deere 6400 is RE23286 - Disc, PTO Clutch.
What hydraulic spin-on filter is recommended for the John Deere 6400?
The recommended hydraulic spin-on filter for the John Deere 6400 is RE45864 - Filter, Hydraulic, Spin-on.
What are some common replacement parts for the John Deere 6400?
Common replacement parts for the John Deere 6400 include the fuel/water separator RE62418 - Filter, Separator, Fuel/Water, hydraulic filter VPK1551 - Hydraulic Filter, clutch disc RE35512 - Disc, Clutch, injector seal R92352 - Seal, Injector, and ignition switch RE61717 - Switch; Ignition.

VTK4045D - Valve Train Kit (Std)
SKU: VTK4045D
2 in stock

T26321 - Lower Bushing
SKU: T26321
69 in stock

RE63913 - Piston Pin Kit
SKU: RE63913
102 in stock

RE27667 - Fuel Lift Transfer Pump
SKU: RE27667
2834 in stock

RE27348 - Connecting Rod (Std) Bearing
SKU: RE27348
1575 in stock

T20094 - Crankshaft Gear
SKU: T20094
5 in stock

T20073 - Camshaft Follower
SKU: T20073
131 in stock

T20070 - Camshaft Gear
SKU: T20070
13 in stock

T20034 - Upper Bushing
SKU: T20034
21 in stock

T20006 - Exhaust Manifold Gasket
SKU: T20006
834 in stock

RE70358 - Metric Filter Head
SKU: RE70358
143 in stock

RE69243 - Engine Oil Dipstick
SKU: RE69243
217 in stock

RE68748 - Leak Off Tube
SKU: RE68748
214 in stock

RE68345 - Fuel Lift Pump
SKU: RE68345
87 in stock

RE66153 - Fuel Transfer Pump
SKU: RE66153
450 in stock

RE65908 - Connecting Rod (Std) Bearing
SKU: RE65908
7182 in stock

RE65836 - Water Temp Sender Switch
SKU: RE65836
71 in stock

RE64292 - Injector O-Ring Kit
SKU: RE64292
1121 in stock

RE61769 - Oil w/ Gasket Cooler
SKU: RE61769
168 in stock

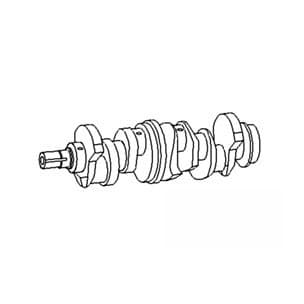

RE56792 - Crankshaft
SKU: RE56792
2 in stock

RE54883 - Crankshaft
SKU: RE54883
Out of stock

RE53073 - Piston Liner Kit
SKU: RE53073
56 in stock

RE52020 - Oil Pump Repair Kit
SKU: RE52020
23 in stock

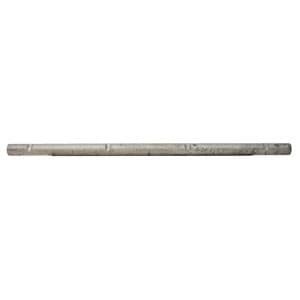

RE519736 - Rocker Shaft
SKU: RE519736
7 in stock
