John Deere 6090MC Tractor Parts

Shop John Deere 6090MC Tractor parts. From filters and fluids to blades and belts, we carry the replacements you need to keep running.

The John Deere 6090MC, manufactured from 2012 to 2017, is a versatile utility tractor popular for its balance of power and maneuverability. Powered by a 90 HP PowerTech PWX 4.5L diesel engine, this tractor delivers reliable performance for a variety of tasks. Its robust PTO horsepower makes it ideal for operating implements like mowers and balers, making it a farmer's trusted workhorse.

About the 6090MC

The John Deere 6090MC was introduced as part of the John Deere 6M series, offering a modern and efficient solution for farmers. Production ran from 2012 to 2017. This model is equipped with a John Deere PowerTech PWX 4.5L 4-cylinder diesel engine, producing a rated 90 engine horsepower. The engine is designed for fuel efficiency and durability. Transmission options included the PowrQuad Plus transmission, providing a range of geared speeds for optimal control. It features a 75 PTO horsepower rating, available with both 540 and 1000 RPM PTO speeds, enhancing its versatility for different implements. The hydraulic system has a capacity of approximately 29.1 GPM, capable of operating multiple hydraulic remotes. The 3-point hitch is a Category 2, offering a lift capacity of around 7,496 lbs. Common applications for the 6090MC include row crop work, hay production, livestock operations, and light tillage. Compared to other models in the 6M series, the 6090MC offers a sweet spot in terms of power and size, making it suitable for medium-sized farms and diverse farming tasks.

6090MC Specifications

EngineJohn Deere PowerTech PWX 90 HP 4.5L Diesel
PTO HP75 HP @ 540/1000 RPM
TransmissionPowrQuad Plus 16F/16R
Hydraulics29.1 GPM, Up to 3 remotes
3-Point HitchCategory 2, 7,496 lbs
Fuel Capacity42.3 gallons
Weight10,803 lbs
Years Produced2012-2017

6090MC Maintenance Tips

  • Engine Oil & Filter: Change the engine oil and filter every 500 hours of operation using the recommended John Deere oil specification for optimal engine life.
  • Hydraulic System: Regularly inspect hydraulic fluid levels and filters. Change hydraulic filters every 1000 hours and use the correct John Deere hydraulic fluid to prevent contamination and maintain hydraulic system performance.
  • Fuel System: Use clean, high-quality diesel fuel and replace fuel filters according to the manufacturer's recommendations. Drain water from the fuel/water separator regularly to prevent fuel system issues.
  • Seasonal Storage: Before storing the tractor for an extended period, fill the fuel tank to prevent condensation, lubricate all grease fittings, and disconnect the battery to prevent discharge. Consider using a fuel stabilizer.

6090MC History & Background

The John Deere 6090MC was a part of the 6M series launched to provide modern solutions for farming needs. It offered a blend of power, comfort, and technology. The 6090MC was a significant model in Deere's lineup, providing a reliable and versatile tractor for a wide range of agricultural applications.

Frequently Asked Questions

Which water pump fits the John Deere 6090MC?

The recommended replacement water pump for the 6090MC is RE546918 - Pump, Water.

Which PTO clutch disc is compatible with the John Deere 6090MC?

For the PTO system, the RE23286 - Disc, PTO Clutch is a compatible replacement part for the John Deere 6090MC.

Which ignition switch is recommended for the John Deere 6090MC?

The RE61717 - Switch; Ignition is a suitable replacement for the John Deere 6090MC.

What are some common replacement parts for the John Deere 6090MC?

For routine maintenance and common replacements on your John Deere 6090MC, consider items such as the RE195491 - Filter, Cab Air, a RE35512 - Disc, Clutch, or a L158186 - Pin; Lower Lift Link. Other frequently replaced items include the AL165074 - Cap; Transmission Oil Filler, W/O Air Vent, AT130104 - Bulb, Halogen Light, and the R50992 - Cap, Hub; Pound In.

Showing 1-24 of 166 products
RE553857 - Manifold To Heat Exchanger Gasket

RE553857 - Manifold To Heat Exchanger Gasket

SKU: RE553857

$20.05

332 in stock

RE575415 - Crankcase Pressure Sensor

RE575415 - Crankcase Pressure Sensor

SKU: RE575415

$42.83

279 in stock

RE545330 - Common Rail To Fuel Injector Fuel Line

RE545330 - Common Rail To Fuel Injector Fuel Line

SKU: RE545330

$31.81

72 in stock

RE543300 - Common Rail To Fuel Injector Fuel Line

RE543300 - Common Rail To Fuel Injector Fuel Line

SKU: RE543300

$35.44

96 in stock

RE538128 - Fuel Pressure Sensor

RE538128 - Fuel Pressure Sensor

SKU: RE538128

$83.42

82 in stock

RE538127 - Fuel Temperature Sensor

RE538127 - Fuel Temperature Sensor

SKU: RE538127

$42.97

6 in stock

RE537636 - EGR Temperature Sensor

RE537636 - EGR Temperature Sensor

SKU: RE537636

$52.67

149 in stock

RE537635 - Manifold Air Temperature Sensor

RE537635 - Manifold Air Temperature Sensor

SKU: RE537635

$49.15

130 in stock

RE536920 - Fuel Inlet Connector Tube

RE536920 - Fuel Inlet Connector Tube

SKU: RE536920

$44.19

44 in stock

RE536275 - Fuel Rail Pressure Sensor

RE536275 - Fuel Rail Pressure Sensor

SKU: RE536275

$208.32

163 in stock

RE536274 - Rail Fuel Injection Pressure Relief Valve

RE536274 - Rail Fuel Injection Pressure Relief Valve

SKU: RE536274

$116.64

242 in stock

RE516553 - Fuel Filter Seal Kit

RE516553 - Fuel Filter Seal Kit

SKU: RE516553

$12.31

232 in stock

RE51650 - Sediment Bowl

RE51650 - Sediment Bowl

SKU: RE51650

$60.56

279 in stock

RE504914 - Engine Oil Pump

RE504914 - Engine Oil Pump

SKU: RE504914

$194.74

62 in stock

RE167207 - Oil Pressure Sensor

RE167207 - Oil Pressure Sensor

SKU: RE167207

$68.01

100 in stock

R80135 - Oil Filler Cap Gasket

R80135 - Oil Filler Cap Gasket

SKU: R80135

$2.53

23 in stock

RE211158 - 3 way Solenoid Valve

RE211158 - 3 way Solenoid Valve

SKU: RE211158

$144.49

31 in stock

AR26480 - Seal

AR26480 - Seal

SKU: AR26480

$9.46

48 in stock

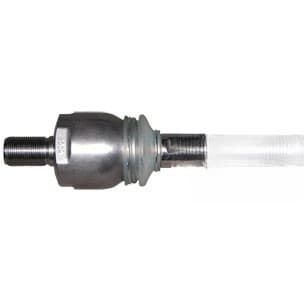

AL222376 - Steering Ball Joint

AL222376 - Steering Ball Joint

SKU: AL222376

$88.50

47 in stock

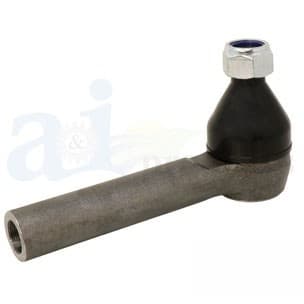

AL222371 - Tie Rod End

AL222371 - Tie Rod End

SKU: AL222371

$194.76

21 in stock

AL161291 - Tapered Roller Bearing Set

AL161291 - Tapered Roller Bearing Set

SKU: AL161291

$141.31

39 in stock

AL113460 - Tie Rod Boot

AL113460 - Tie Rod Boot

SKU: AL113460

$24.69

56 in stock

AL113451 - Tie Rod Boot

AL113451 - Tie Rod Boot

SKU: AL113451

$20.85

24 in stock

U41966 - Durometer 75 (4/Pack) .103" Thick O-Ring; 1.424" ID X  1.630" OD

U41966 - Durometer 75 (4/Pack) .103" Thick O-Ring; 1.424" ID X 1.630" OD

SKU: U41966

$1.79

176 in stock
