John Deere 5625 Tractor Parts
Shop John Deere 5625 Tractor parts. From filters and fluids to blades and belts, we carry the replacements you need to keep running.
The John Deere 5625 was a popular utility tractor manufactured from 2003 to 2007. Powered by a reliable John Deere PowerTech 4.5L diesel engine, it delivers approximately 75 horsepower. With a PTO horsepower rating of around 64, the 5625 proved to be a versatile workhorse for various farming tasks, particularly appreciated for its balance of power and maneuverability in row crop and hay operations.
About the 5625
The John Deere 5625 was introduced in 2003 as part of the John Deere 5000 series, offering a step up in power and capabilities from smaller models in the lineup. Production continued until 2007. This tractor is equipped with a John Deere PowerTech 4045T 4.5L 4-cylinder turbocharged diesel engine, producing around 75 engine horsepower. The transmission options included a SyncShuttle transmission offering 9 forward and 3 reverse speeds, providing good versatility for different tasks. The PTO delivers approximately 64 horsepower and is available in both 540 RPM configurations. The hydraulic system provides a flow rate of around 17.4 GPM, powering two rear remotes. The 3-point hitch is a Category II, capable of lifting around 4,000 lbs. The 5625 was commonly used in row crop operations for planting, cultivating, and spraying, as well as in hay production for mowing, baling, and transporting. It's also well-suited for livestock operations, handling tasks such as feeding and manure spreading. Compared to smaller 5000 series models, the 5625 offered more power for heavier implements, while maintaining a compact size for maneuverability. It was a well-rounded utility tractor known for its reliability and ease of use.
5625 Specifications
| Engine | John Deere PowerTech 4045T 75 HP Diesel |
|---|---|
| PTO HP | 64 HP @ 540 RPM |
| Transmission | SyncShuttle 9x3 |
| Hydraulics | 17.4 GPM, 2 remotes |
| 3-Point Hitch | Category II, 4000 lbs |
| Fuel Capacity | 29 gallons |
| Weight | 7,180 lbs |
| Years Produced | 2003-2007 |
5625 Maintenance Tips
- Change engine oil and filter every 250 hours using high-quality oil meeting John Deere specifications.
- Regularly inspect hydraulic fluid levels and filters, replacing the filter at recommended intervals to prevent contamination and maintain hydraulic performance.
- Use fresh, clean diesel fuel and consider adding a fuel stabilizer, especially during seasonal storage, to prevent fuel degradation and injector clogging.
- Before winter storage, drain fuel and condensation from the fuel/water separator and consider treating the fuel to protect it from freezing/gelling.
5625 History & Background
The John Deere 5625 was released in 2003 as a mid-range utility tractor in the John Deere 5000 series. It offered improved horsepower and hydraulic capacity compared to the smaller frame tractors in the lineup, making it a popular choice for diverse farming operations. Its significance lies in providing a reliable and versatile workhorse for farmers needing a balance of power and maneuverability.
Frequently Asked Questions
Which water pump is recommended for the John Deere 5625?

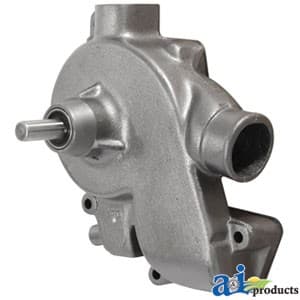

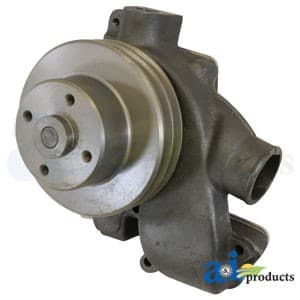

For the John Deere 5625, the recommended replacement water pump is RE500734 - Water Pump. It ensures optimal engine cooling performance.
What ignition switch fits the John Deere 5625?
The correct ignition switch for the John Deere 5625 is RE61717 - Switch; Ignition, ensuring reliable starting for your tractor.
What oil filter fits the 5625?
The recommended engine oil filter for the John Deere 5625 is RE59754 - Filter, Engine Oil. It provides excellent filtration for your engine's needs.
What are common parts needed for the 5625?
For routine maintenance and common replacements on the John Deere 5625, consider these parts: an engine oil filter like RE59754 - Filter, Engine Oil, a fuel filter such as AL153517 - Fuel Filter, the hydraulic filter RE45864 - Filter, Hydraulic, Spin-on, the cab air filter RE195491 - Filter, Cab Air, and a PTO disc like RE227648 - PTO Disc; 4 Button.

RE66271 - Piston Rings
SKU: RE66271
45 in stock

RE65967 - Piston Liner Kit
SKU: RE65967
55 in stock

RE507287 - Injector Nozzle
SKU: RE507287
Out of stock

RE506195 - Taper Nose Crankshaft
SKU: RE506195
4 in stock

T20073 - Camshaft Follower
SKU: T20073
131 in stock

T20006 - Exhaust Manifold Gasket
SKU: T20006
834 in stock

RE71550 - Turbocharger
SKU: RE71550
14 in stock

RE70358 - Metric Filter Head
SKU: RE70358
143 in stock

RE69243 - Engine Oil Dipstick
SKU: RE69243
217 in stock

RE66153 - Fuel Transfer Pump
SKU: RE66153
450 in stock

RE66082 - Upper Gasket Set
SKU: RE66082
42 in stock

RE65966 - Piston Liner Kit
SKU: RE65966
40 in stock

RE65912 - Thrust (.010") Bearing
SKU: RE65912
73 in stock

RE65911 - Main (.010") Bearing
SKU: RE65911
721 in stock

RE65909 - Connecting Rod (.010") Bearing
SKU: RE65909
79 in stock

RE65908B - Connecting Rod (.020") Bearing
SKU: RE65908B
8 in stock

RE65908 - Connecting Rod (Std) Bearing
SKU: RE65908
7182 in stock

RE65168B - Thrust (.020") Bearing
SKU: RE65168B
14 in stock

RE65168 - Thrust (Std) Bearing
SKU: RE65168
627 in stock

RE65165 - Main (Std) Bearing
SKU: RE65165
6921 in stock

RE64292 - Injector O-Ring Kit
SKU: RE64292
1121 in stock

RE62240 - 12V Fuel Injection Pump Shutoff Solenoid
SKU: RE62240
33 in stock

RE60062 - Pencil Injector
SKU: RE60062
68 in stock

RE59810 - Front Crankshaft Seal
SKU: RE59810
61 in stock
