John Deere 5520N Tractor Parts
John Deere 5520N Tractor parts in stock. Quality OEM and aftermarket replacement parts with fast shipping and competitive prices.
The John Deere 5520N was a popular narrow row crop tractor produced from 2003 to 2007. It's powered by a reliable 75 HP John Deere PowerTech 3029T diesel engine. This tractor provided ample power for various implements and featured a 63 PTO horsepower rating, making it a versatile choice for farmers needing a compact yet capable machine.
About the 5520N
The John Deere 5520N was introduced in 2003 as part of the John Deere N-Series narrow row crop tractors, and production continued until 2007. This model was designed specifically for applications requiring a narrow footprint, such as working in orchards, vineyards, and narrow-row crop farming. The 5520N is equipped with a John Deere PowerTech 3029T 2.9L (179 cu in) three-cylinder turbocharged diesel engine producing approximately 75 horsepower. The transmission options typically included a SyncShuttle transmission with various speed configurations, such as 9 forward and 3 reverse gears, allowing for precise speed control in different field conditions. The PTO delivers around 63 horsepower at 540 RPM. Hydraulic capacity is approximately 12.5 GPM, providing sufficient power for implements. It has a Category II 3-point hitch, offering a lift capacity of around 3,300 lbs. Common applications include row crop cultivation, spraying, mowing, and light tillage. What distinguished the 5520N from other John Deere models was its narrow width design, enhancing maneuverability in tight spaces, while still providing the power and features expected from a larger tractor.
5520N Specifications
| Engine | John Deere PowerTech 3029T 75 HP 2.9L Diesel |
|---|---|
| PTO HP | 63 HP @ 540 RPM |
| Transmission | SyncShuttle 9F/3R |
| Hydraulics | 12.5 GPM, 2 remotes |
| 3-Point Hitch | Category II, 3300 lbs |
| Fuel Capacity | 21.1 gallons |
| Weight | 5,910 lbs |
| Years Produced | 2003-2007 |
5520N Maintenance Tips
- Engine Oil and Filter: Change the engine oil and filter every 250 hours using the recommended John Deere oil and filter. Regularly check oil levels and inspect for leaks.
- Hydraulic System Maintenance: Inspect hydraulic hoses and fittings for leaks. Replace hydraulic filters every 500 hours to maintain hydraulic system performance.
- Fuel System Care: Use clean, high-quality diesel fuel. Regularly check and replace the fuel filter to prevent fuel system contamination and ensure optimal engine performance.
- Seasonal Storage: Before storing the tractor for the off-season, stabilize the fuel, grease all fittings, and disconnect the battery to prevent corrosion and ensure easy starting next season.
5520N History & Background
The John Deere 5520N was launched in 2003 as part of the N-series tractors to address the demand for a compact, powerful machine suited for narrow-row farming. There were no major redesigns during its production run from 2003 to 2007. It played a significant role in providing farmers with a versatile and efficient tractor for specialized agricultural applications.
Frequently Asked Questions
Which water pump is suitable for the John Deere 5520N?
For the John Deere 5520N, the recommended replacement water pump is RE500734 - Water Pump.
What PTO disc is recommended for the 5520N?
The RE227648 - PTO Disc is a suitable replacement for your John Deere 5520N.
What oil filter fits the 5520N?
For the John Deere 5520N, the RE59754 - Engine Oil Filter is an excellent choice.
What are common replacement parts for the John Deere 5520N?

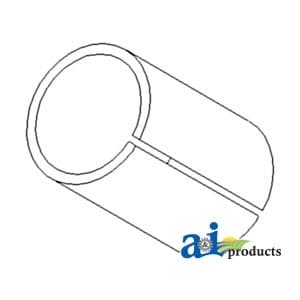

Common replacement parts for the John Deere 5520N include the RE516553 - Fuel Filter Seal Kit, RE45864 - Hydraulic Filter, RE548027 - Belt Tensioner, RE61717 - Switch; Ignition, RE48786 - Injector, Pencil, and R109452 - Bushing, Spindle.

RE65967 - Piston Liner Kit
SKU: RE65967
55 in stock

T20073 - Camshaft Follower
SKU: T20073
131 in stock

T20006 - Exhaust Manifold Gasket
SKU: T20006
834 in stock

T122075 - Oil Cooler (2 PK) O-Ring
SKU: T122075
43 in stock

RE71550 - Turbocharger
SKU: RE71550
14 in stock

RE69243 - Engine Oil Dipstick
SKU: RE69243
217 in stock

RE68748 - Leak Off Tube
SKU: RE68748
214 in stock

RE66082 - Upper Gasket Set
SKU: RE66082
42 in stock

RE65912 - Thrust (.010") Bearing
SKU: RE65912
73 in stock

RE65911 - Main (.010") Bearing
SKU: RE65911
721 in stock

RE65909 - Connecting Rod (.010") Bearing
SKU: RE65909
79 in stock

RE65908B - Connecting Rod (.020") Bearing
SKU: RE65908B
8 in stock

RE65908 - Connecting Rod (Std) Bearing
SKU: RE65908
7182 in stock

RE65168B - Thrust (.020") Bearing
SKU: RE65168B
14 in stock

RE65168 - Thrust (Std) Bearing
SKU: RE65168
627 in stock

RE65165 - Main (Std) Bearing
SKU: RE65165
6921 in stock

RE64292 - Injector O-Ring Kit
SKU: RE64292
1121 in stock

RE62240 - 12V Fuel Injection Pump Shutoff Solenoid
SKU: RE62240
33 in stock

RE60062 - Pencil Injector
SKU: RE60062
68 in stock

RE59810 - Front Crankshaft Seal
SKU: RE59810
61 in stock

RE59296 - 5 Plate Engine Oil Cooler
SKU: RE59296
57 in stock

RE56375 - Camshaft
SKU: RE56375
9 in stock

RE548027 - Belt Tensioner
SKU: RE548027
143 in stock

RE527042 - Complete Overhaul Gasket Set
SKU: RE527042
30 in stock
