John Deere 5225 Tractor Parts
Find parts for your John Deere 5225 Tractor. We stock OEM and quality aftermarket replacements ready to ship.
The John Deere 5225 was a popular utility tractor produced from 2004 to 2007, known for its versatility and reliability on the farm. Powered by a 71 HP diesel engine, the 5225 delivered ample power for various tasks. Its robust design and 60 PTO horsepower made it a favorite for haying, livestock operations, and general field work.
About the 5225
The John Deere 5225 was introduced in 2004 as part of the John Deere's 5000 series utility tractors, filling a niche for a mid-size, dependable machine. Production ran until 2007. The tractor is equipped with a Yanmar 4TNV88 diesel engine, producing approximately 71 engine horsepower and a displacement of 134.2 cubic inches. Transmission options included a standard 9-speed synchronized transmission with three ranges, offering good versatility. A 12-speed PowrReverser transmission was also available. The 5225 delivers around 60 PTO horsepower, available in a standard 540 RPM configuration. Its hydraulic system provides a flow rate of approximately 12.7 GPM, supporting two rear remotes. The 3-point hitch is a Category II, capable of lifting around 3086 lbs. The John Deere 5225 was commonly used in row crop applications, hay production, and general livestock operations, suitable for tasks like mowing, baling, tilling, and loader work. It distinguished itself with a solid, reliable design and a good power-to-weight ratio, making it a practical and efficient choice for a wide range of farm tasks, standing out from smaller models with its increased power and from larger models with its nimble size.
5225 Specifications
| Engine | Yanmar 4TNV88 71 HP Diesel |
|---|---|
| PTO HP | 60 HP @ 540 RPM |
| Transmission | 9-Speed Synchro, 12-Speed PowrReverser |
| Hydraulics | 12.7 GPM, 2 remotes |
| 3-Point Hitch | Category II, 3086 lbs lift capacity |
| Fuel Capacity | 19.5 gallons |
| Weight | 6217 lbs |
| Years Produced | 2004-2007 |
5225 Maintenance Tips
- Engine Oil & Filter: Change the engine oil and filter every 250 hours of operation using the recommended John Deere oil and filter. Regular oil changes are crucial for engine longevity.
- Hydraulic System: Check hydraulic fluid levels regularly and inspect for leaks. Replace hydraulic filters every 500 hours or as recommended in the operator's manual to maintain optimal hydraulic performance.
- Fuel System: Use clean, high-quality diesel fuel and replace fuel filters according to the maintenance schedule (typically every 500 hours). Drain water from the fuel/water separator regularly to prevent fuel system issues.
- Seasonal Storage: Before storing the tractor for an extended period, stabilize the fuel, change the engine oil and filter, lubricate all grease fittings, and disconnect the battery. Store the tractor in a dry location to prevent corrosion.
5225 History & Background
The John Deere 5225 was introduced in 2004 as a versatile utility tractor designed for a variety of agricultural tasks. It was part of the popular 5000 series, known for their reliability and practicality. While it didn't undergo major redesigns during its production run, it provided a solid and dependable platform that contributed to John Deere's reputation for quality farm machinery.
Frequently Asked Questions
Which glow plug fits the John Deere 5225?
The recommended glow plug for the John Deere 5225 is RE505867 - Glow Plug.
What replacement PTO shaft is available for the 5225?
A reliable replacement PTO shaft (540/1000 RPM) for the John Deere 5225 is L156976 - Shaft, PTO (540/1000 RPM).
What oil filter fits the 5225?
For the John Deere 5225, the recommended lube spin-on filter is RE519626 - Filter, Lube, Spin-on.
What are some common replacement parts for the John Deere 5225?
Some common replacement parts for the John Deere 5225 include the RE508202 - Filter, Fuel/Water Separator, RE195491 - Filter, Cab Air, AT171854 - Filter, Inner Air, RE217817 - Tie Rod End, Steering Cylinder, RH / LH, JD9449 - Bearing, Pilot: .669" I.D., and AR59780 - Receiver Drier.

RE540179 - Anti-Siphon Valve Fuel Fitting
SKU: RE540179
61 in stock

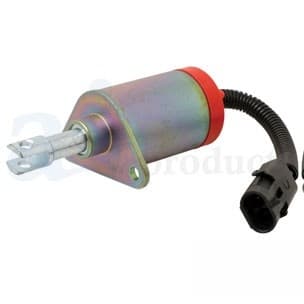

RE526570 - 12V Engine Performance Solenoid
SKU: RE526570
15 in stock

RE521175 - Injection Nozzle Seal Kit
SKU: RE521175
Out of stock

RE520244 - W/ Sleeve Crankshaft Pulley
SKU: RE520244
Out of stock

RE515469 - 9 Plate Oil Cooler
SKU: RE515469
23 in stock

RE505867 - Glow Plug
SKU: RE505867
447 in stock

RE505621 - Fan Drive Hub W/ Bearing
SKU: RE505621
2 in stock

RE500844 - Water Temperature Sensor
SKU: RE500844
117 in stock

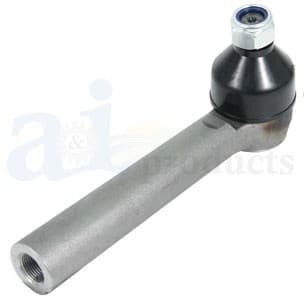

RE271441 - LH/RH Straight Tie Rod
SKU: RE271441
27 in stock

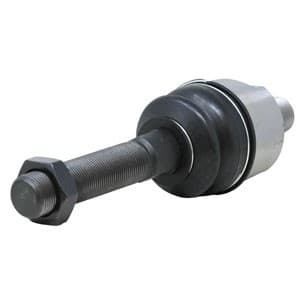

RE271440 - Tie Rod End
SKU: RE271440
53 in stock

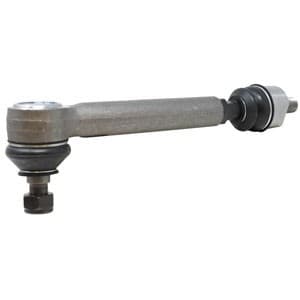

RE271437 - Tie Rod Assembly
SKU: RE271437
89 in stock

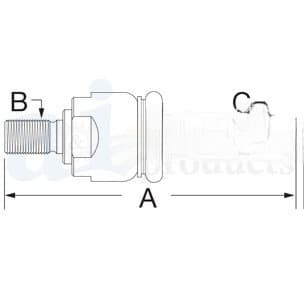

RE217817 - RH / LH Steering Cylinder Tie Rod End
SKU: RE217817
165 in stock

RE204879 - RH/LH Steering Cylinder Ball Joint
SKU: RE204879
64 in stock

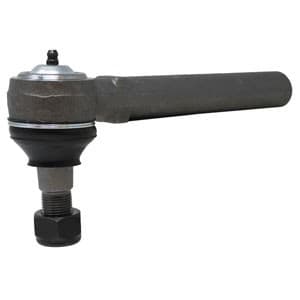

RE204878 - RH / LH Steering Cylinder Tie Rod End
SKU: RE204878
46 in stock

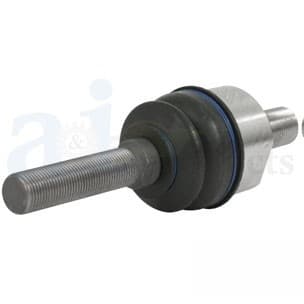

AL39320 - RH Ball Joint
SKU: AL39320
71 in stock

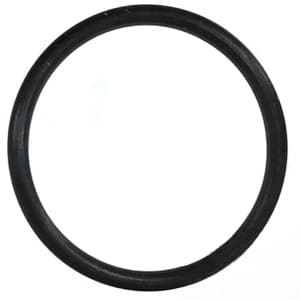

U41966 - Durometer 75 (4/Pack) .103" Thick O-Ring; 1.424" ID X 1.630" OD
SKU: U41966
176 in stock

R51603 - Durometer 70 (10/Pack) O-Ring; .612" ID X .818" OD X .103" Thick
SKU: R51603
240 in stock

R1225R - Durometer 75 (5/ Pack) O-Ring; 1.171" ID X 1.449" OD X .139" Thick
SKU: R1225R
535 in stock

CH14701 - 1.551" ID X 1.795" OD X .122" Thick (2/Pack) O-Ring
SKU: CH14701
64 in stock

54M4422 - Yoke
SKU: 54M4422
33 in stock

R515218 - Alternator Belt
SKU: R515218
69 in stock

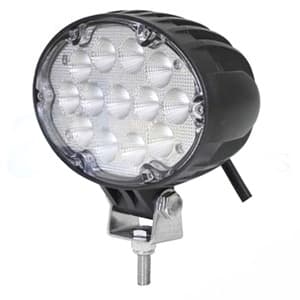

WL9560 - Oval Flood LED Work Lamp
SKU: WL9560
102 in stock

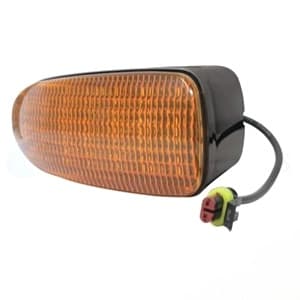

WL7550 - LH/RH Amber LED Warning Light
SKU: WL7550
33 in stock

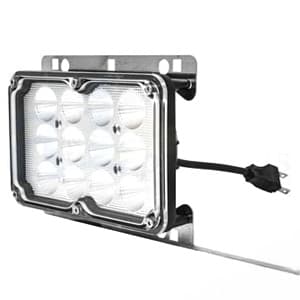

WL5670 - Rectangle Hi / Low LED Work Lamp
SKU: WL5670
196 in stock
