John Deere 5200 Tractor Parts
John Deere 5200 Tractor parts in stock. Quality OEM and aftermarket replacement parts with fast shipping and competitive prices.
The John Deere 5200 tractor, manufactured from 1993 to 1997, was a popular choice for farmers needing a reliable utility tractor. Powered by a 66-horsepower diesel engine, it provided ample power for a variety of tasks. Its robust design and dependable performance, combined with a 56 PTO horsepower, made the 5200 a valuable asset for many agricultural operations.
About the 5200
The John Deere 5200 was introduced in 1993 as part of the 5000 series tractors, designed to offer a balance of power, versatility, and affordability. Production continued through 1997. The engine is a John Deere 3029D, a 2.9L (179 cu in) three-cylinder diesel engine producing approximately 66 engine horsepower. This engine provided a solid power base for diverse agricultural tasks. The transmission was typically a synchronized manual transmission with 9 forward and 3 reverse gears, though other transmission options may have been available. The PTO delivered around 56 horsepower, operating at 540 RPM, making it suitable for powering implements like mowers, balers, and tillers. The hydraulic system offered a capacity of around 12.7 GPM, with options for one or two remote valves to operate hydraulic implements. A Category II 3-point hitch allowed for easy attachment of a wide range of implements. The 5200 was commonly used for row crop work, hay production, livestock operations, and general tillage. Compared to other models in the John Deere lineup, the 5200 offered a sweet spot in terms of power and size, providing more capability than smaller compact tractors but remaining maneuverable enough for tighter spaces.
5200 Specifications
| Engine | John Deere 3029D 66 HP 179 ci Diesel |
|---|---|
| PTO HP | 56 HP @ 540 RPM |
| Transmission | Synchro 9F/3R |
| Hydraulics | 12.7 GPM, 1-2 remotes |
| 3-Point Hitch | Category II, 3130 lbs |
| Fuel Capacity | 24 gallons |
| Weight | 5247 lbs |
| Years Produced | 1993-1997 |
5200 Maintenance Tips
- Engine Oil & Filter: Change the engine oil and filter every 250 hours of operation, using the recommended John Deere oil specification.
- Hydraulic System: Inspect hydraulic fluid levels regularly and change the hydraulic filter every 500 hours to maintain optimal performance and prevent damage.
- Fuel System: Use clean, high-quality diesel fuel and replace the fuel filter every 250 hours to ensure proper engine function.
- Seasonal Storage: Before storing the tractor for the off-season, add a fuel stabilizer to prevent fuel degradation and condensation.
5200 History & Background
The John Deere 5200 was launched in 1993 as part of the 5000 series, aiming to bridge the gap between compact utility tractors and larger row-crop models. There were no major redesigns during its production run from 1993 to 1997. The 5200 played a significant role in providing farmers with a reliable and versatile machine for a wide range of tasks.
Frequently Asked Questions
Which water pump fits the John Deere 5200?
The recommended water pump for the John Deere 5200 is RE19944 - Pump Assembly, Water.
What PTO disc is compatible with the John Deere 5200?
For the John Deere 5200, a compatible PTO disc is the RE227648 - PTO Disc; 4 Button.
What fuel filter fits the John Deere 5200?
The recommended fuel/water separator filter for the John Deere 5200 is RE62418 - Filter, Separator, Fuel/Water.
What are some recommended replacement parts for the John Deere 5200?
For routine maintenance and common replacements, consider parts such as the RE45864 - Filter, Hydraulic, Spin-on, RE27667 - Pump, Fuel Lift Transfer, AR89564 - Injector, Pencil, R109452 - Bushing, Spindle, Upper / Lower, and AT20703 - Seal, Rear Axle Shaft.

VTK3029D - Valve Train Kit (Std)
SKU: VTK3029D
Out of stock

T26321 - Lower Bushing
SKU: T26321
69 in stock

T24534 - Pan Gasket
SKU: T24534
36 in stock

T20328 - Oil Filler Cap Gasket
SKU: T20328
48 in stock

RE63913 - Piston Pin Kit
SKU: RE63913
102 in stock

RE520036 - Rear Crankshaft Seal
SKU: RE520036
236 in stock

RE27667 - Fuel Lift Transfer Pump
SKU: RE27667
2834 in stock

RE27348 - Connecting Rod (Std) Bearing
SKU: RE27348
1575 in stock

T20129 - Valve Stem Cap
SKU: T20129
155 in stock

T20094 - Crankshaft Gear
SKU: T20094
5 in stock

T20073 - Camshaft Follower
SKU: T20073
131 in stock

T20070 - Camshaft Gear
SKU: T20070
13 in stock

T20034 - Upper Bushing
SKU: T20034
21 in stock

T20006 - Exhaust Manifold Gasket
SKU: T20006
834 in stock

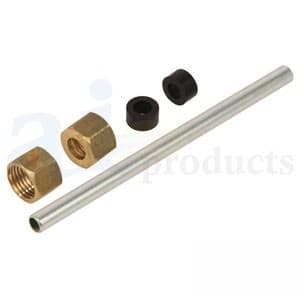

RE68748 - Leak Off Tube
SKU: RE68748
214 in stock

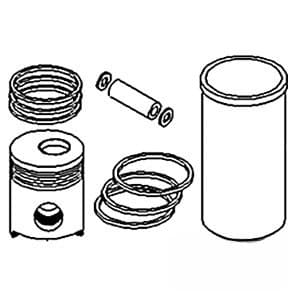

RE66968 - Piston Liner Kit
SKU: RE66968
15 in stock

RE62240 - 12V Fuel Injection Pump Shutoff Solenoid
SKU: RE62240
33 in stock

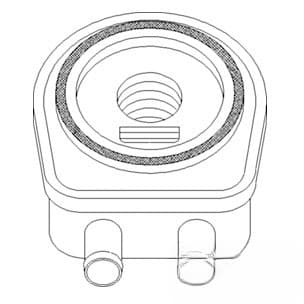

RE61767 - Oil w/ Gasket Cooler
SKU: RE61767
1 in stock

RE52020 - Oil Pump Repair Kit
SKU: RE52020
23 in stock

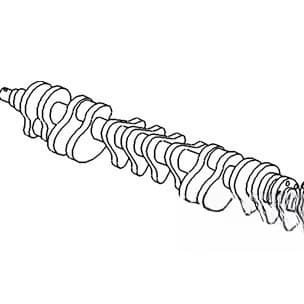

RE50979 - Crankshaft
SKU: RE50979
4 in stock

RE508317 - W/ Adjusting Screw Rocker Arm
SKU: RE508317
64 in stock

RE50467 - Fuel Hand Primer
SKU: RE50467
717 in stock

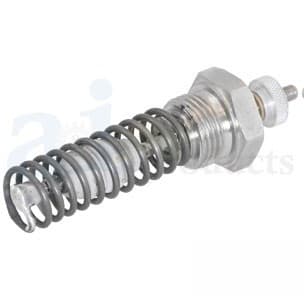

RE502079 - Glow Plug
SKU: RE502079
164 in stock

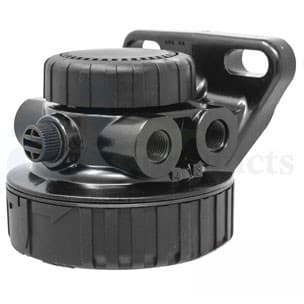

RE500160 - SAE Thread Filter Head Assy
SKU: RE500160
82 in stock
