John Deere 5065M Tractor Parts

5065M parts and accessories

The John Deere 5065M is a utility tractor produced from 2013 to 2019, renowned for its reliability and versatility. Powered by a robust John Deere PowerTech diesel engine, it delivers around 65 horsepower, making it ideal for a variety of farm tasks. With a PTO horsepower around 53, this tractor was a popular choice among farmers for its efficient performance in haying, livestock operations, and general field work.

The John Deere 5065M tractor was introduced as part of the John Deere 5M series, which aimed to provide farmers with dependable utility tractors. Production spanned from 2013 to 2019. It features a John Deere PowerTech 4045T diesel engine, a 4.5L (276 cu in) turbocharged engine, delivering approximately 65 engine horsepower. The transmission is typically a 9-speed synchronized transmission, offering a good range of speeds for different tasks. The PTO horsepower is around 53 HP, available in either 540 RPM. The hydraulic system has a capacity of around 15.9 GPM, often equipped with 2-3 rear remotes. It's equipped with a Category II 3-point hitch, capable of lifting around 4,310 lbs. The 5065M excels in various farming applications, including hay baling, loader work for livestock operations, light tillage, and row crop cultivation. It stands out in the 5M lineup for its balanced power and size, making it a versatile option for small to medium-sized farms.

Specifications

Engine	John Deere PowerTech 65 HP 4.5L Diesel
PTO HP	53 HP @ 540 RPM
Transmission	9-Speed Synchronized
Hydraulics	15.9 GPM, 2-3 remotes
3-Point Hitch	Category II, 4310 lbs
Fuel Capacity	30 gallons
Weight	7,546 lbs
Years Produced	2013-2019

Maintenance Tips

Engine Oil & Filter: Change the engine oil and filter every 250 hours of operation using the recommended John Deere oil specification to maintain optimal engine performance.
Hydraulic System: Check and maintain the hydraulic fluid level regularly, and replace the hydraulic filter every 500 hours to prevent contamination and ensure smooth hydraulic operation.
Fuel System: Use high-quality fuel and regularly inspect the fuel filter and fuel lines for any signs of contamination or leaks. Drain the water separator periodically to prevent water from entering the fuel system.
Seasonal Storage: Before storing the tractor for the off-season, add fuel stabilizer to prevent fuel degradation, grease all fittings, and disconnect the battery to prevent drain. Store in a covered area to protect from the elements.

History & Background

The John Deere 5065M was launched as part of the updated 5M series tractors in 2013. These tractors were designed to improve operator comfort and enhance performance for various agricultural tasks. The 5065M quickly became known for its reliable engine and versatility, solidifying its place as a key model within the John Deere utility tractor lineup.

Frequently Asked Questions

What engine is in the John Deere 5065M?

The John Deere 5065M is equipped with a John Deere PowerTech 4045T, a 4.5L (276 cu in) turbocharged diesel engine producing 65 HP.

What is the PTO horsepower on a 5065M?

The PTO horsepower on the John Deere 5065M is approximately 53 HP, available at 540 RPM.

What oil filter fits the 5065M?

The recommended oil filter for the John Deere 5065M is typically a John Deere filter part number RE504836. Cross-references include Wix 57202 and Baldwin B7349.

What are common parts needed for the 5065M?

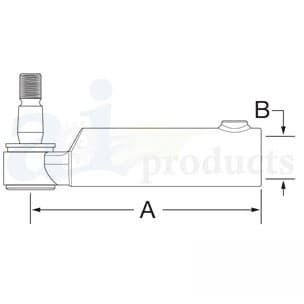

Common wear parts for the John Deere 5065M include engine oil filters, fuel filters (RE522878), hydraulic filters, fan belts, hydraulic cylinder seal kits, steering components like tie rod ends, and clutch discs.
