John Deere 5010 Tractor Parts
Browse John Deere 5010 Tractor replacement parts. Everything from routine maintenance items to hard-to-find components.
The John Deere 5010 was a powerhouse tractor produced from 1963 to 1967, quickly becoming a favorite among farmers. Powered by a robust 118 horsepower diesel engine and boasting a substantial PTO output, the 5010 was known for its ability to handle demanding tasks like heavy tillage and large harvesting implements. Its rugged design and power helped farmers increase productivity during a period of rapid agricultural expansion.
About the 5010
The John Deere 5010 was introduced in 1963 as a significant addition to the John Deere tractor lineup, filling a need for a more powerful machine. Production continued until 1967. The 5010 was equipped with a John Deere 6-cylinder diesel engine, producing approximately 118 horsepower with a displacement of 404 cubic inches. The engine delivered ample power for a variety of demanding agricultural applications. It featured an 8-speed transmission, providing a good range of speeds for various field operations. The PTO delivered around 105 horsepower at 540 RPM, capable of powering a wide range of implements. Its hydraulic system had a capacity of around 27 GPM to support implements, with typically two remote valves available. The 5010 featured a Category II 3-point hitch, allowing for the use of standard implements. Commonly used in row crop operations, hay production, and tillage, the 5010 offered more power than the smaller models in the John Deere lineup, making it ideal for farmers with larger acreage or heavier implements. It stood out due to its powerful engine and robust construction.
5010 Specifications
| Engine | John Deere 6-Cylinder Diesel 118 HP, 404 ci |
|---|---|
| PTO HP | 105 HP @ 540 RPM |
| Transmission | Gear, 8-speed |
| Hydraulics | 27 GPM, 2 remotes |
| 3-Point Hitch | Category II, 5300 lbs lift capacity |
| Fuel Capacity | 48 gallons |
| Weight | 12,800 lbs |
| Years Produced | 1963-1967 |
5010 Maintenance Tips
- Change the engine oil and filter every 250 hours, using a high-quality diesel engine oil that meets John Deere's specifications.
- Inspect and clean the hydraulic system filters regularly, typically every 500 hours, to prevent contamination and maintain hydraulic performance.
- Keep the fuel system clean by using a fuel conditioner and replacing the fuel filter at least once a year, or more frequently if fuel quality is poor.
- Before storing the tractor for the off-season, drain the fuel tank, change the oil and filters, and lubricate all grease fittings to protect against corrosion.
5010 History & Background
The John Deere 5010 was released in 1963 as a significant step up in power for John Deere tractors. It represented a shift towards larger and more capable machines. While not undergoing major redesigns during its production run, it remains an important tractor in John Deere's history, demonstrating the company's commitment to meeting the evolving needs of farmers.
Frequently Asked Questions
Which fuel lift pump fits the John Deere 5010?
The recommended fuel lift pump for the John Deere 5010 is RE27667 - Pump, Fuel Lift Transfer.
Which PTO release bearing is needed for the John Deere 5010?
The correct PTO release bearing for your tractor is CH18554 - Bearing, PTO Release.
Which brake valve overhaul kit fits the John Deere 5010?
The correct brake valve overhaul kit for the John Deere 5010 is AR31946 - Brake Valve Overhaul Kit.
What are common replacement parts for the John Deere 5010?
Common replacement parts for the John Deere 5010 include the AR50041 - Filter, Diesel Fuel, AR94516 - Disc, Direct Drive Clutch, CH18554 - Bearing, PTO Release, R36846 - Thermostat, 180°, and R110464 - Brake Pads, Metallic.

RE27667 - Fuel Lift Transfer Pump
SKU: RE27667
2834 in stock

AP8403 - Syklone¦ (QTY 1) Air Precleaner
SKU: AP8403
Out of stock

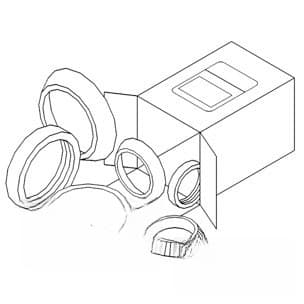

WBKJD9 - Wheel Bearing Kit
SKU: WBKJD9
18 in stock

M2301T - Clamp
SKU: M2301T
123 in stock

AR74131 - Inner Ball Joint
SKU: AR74131
10 in stock

AR44883 - Steering Valve Cylinder; W/ Check Valve Seat Cover
SKU: AR44883
14 in stock

AR26480 - Seal
SKU: AR26480
48 in stock

U13639 - Durometer 90 (2/Pack) .118" Thick O-Ring; 1.475" ID X 1.711" OD
SKU: U13639
1346 in stock

U12331 - Durometer 75 (4/Pack) .139" Thickness O-Ring; 2.734" ID X 3.012" OD
SKU: U12331
356 in stock

U10289 - Durometer 75 (10/Pack) .139" Thick O-Ring; 1.484" ID X 1.762" OD
SKU: U10289
910 in stock

R72653 - Snap; 50/Pack Ring
SKU: R72653
2800 in stock

R56757 - Durometer 75 (2/Pack) .139" Thick O-Ring; 3.609" ID X 3.887" OD
SKU: R56757
202 in stock

R56751 - Durometer 75 (2/Pack) O-Ring; .924" ID X 1.156" OD X .116" Thick
SKU: R56751
258 in stock

R459R - Durometer 70 (25/Pack) .103" Thick O-Ring; .549" ID X .755 OD
SKU: R459R
250 in stock

R29463 - Durometer 75 (5/Pack) .139" Thick O-Ring; 1.234" ID X 1.512" OD
SKU: R29463
280 in stock

R28782 - Durometer 90 (25/Pack) .072" Thick O-Ring; .351" ID X .495" OD
SKU: R28782
225 in stock

R27928 - Durometer 75 (25/Pack) .070" Thick O-Ring; .926" ID X 1.066" OD
SKU: R27928
75 in stock

R27564 - Durometer 70 (10/Pack) .070" Thick O-Ring; .739" ID X .879" OD
SKU: R27564
90 in stock

R27149 - Durometer 75 (5/Pack) .139" Thick O-Ring; .921" ID X 1.199" OD
SKU: R27149
190 in stock

R26871 - Snap Ring
SKU: R26871
660 in stock

R21722 - Durometer 90 (5/Pack) .139" Thick O-Ring; .796" ID X 1.074" OD
SKU: R21722
65 in stock

B3690R - Durometer 75 (5/Pack) O-Ring; 1.859" ID X 2.137" OD X .139" Thick
SKU: B3690R
330 in stock

B2762R - Durometer 70 (10/Pack) .139" Thick O-Ring; .734" ID X 1.012" OD
SKU: B2762R
1290 in stock

A5598R - Durometer 70 (2/Pack) .210" Thick O-Ring; 3.600" ID X 4.020" OD
SKU: A5598R
174 in stock
