John Deere 4960 Tractor Parts
Find parts for your John Deere 4960 Tractor. We stock OEM and quality aftermarket replacements ready to ship.
The John Deere 4960, manufactured from 1992 to 1994, was a premium tractor known for its power and advanced features. Powered by an 8.1L John Deere diesel engine producing approximately 200 engine horsepower and around 175 PTO horsepower, this model was a favorite among farmers for its reliable performance in demanding field applications. Its power and comfortable cab made it a workhorse for many.
About the 4960
The John Deere 4960 was introduced in 1992 as part of the John Deere 60 series, replacing the 4955. Production ran until 1994. Under the hood sits an 8.1L (496 cu in) John Deere diesel engine, delivering a rated 200 engine horsepower. These engines provided ample power for various tasks. The transmission was a 15-speed PowerShift transmission, offering smooth gear changes and enhanced productivity. It provided 15 forward and 4 reverse speeds. The PTO delivers 175 horsepower and offers both 540 and 1000 RPM options to accommodate a wide range of implements. The hydraulic system boasts a flow rate of approximately 29 GPM and is equipped with multiple remote valves for operating hydraulic implements. The 3-point hitch is a Category II or III, depending on the configuration, offering a lift capacity of around 9,800 lbs. The 4960 was commonly used for row crop operations, hay production, livestock management, and tillage work. What sets the 4960 apart is its blend of power, comfort, and advanced features like the electronic monitoring system, making it a sought-after tractor for many farms.
4960 Specifications
| Engine | John Deere 8.1L 200 HP Diesel |
|---|---|
| PTO HP | 175 HP @ 540/1000 RPM |
| Transmission | PowerShift 15-speed |
| Hydraulics | 29 GPM, 3-4 remotes |
| 3-Point Hitch | Category II/III, 9,800 lbs lift capacity |
| Fuel Capacity | 92 gallons |
| Weight | 18,620 lbs |
| Years Produced | 1992-1994 |
4960 Maintenance Tips
- Engine Oil & Filter: Change the engine oil and filter every 250-300 hours using the recommended John Deere oil and filter. Regularly check the oil level and condition.
- Hydraulic System: Inspect hydraulic fluid levels and check for leaks. Replace hydraulic filters per the manufacturer's recommendations (typically every 500 hours) to prevent contamination.
- Fuel System: Use high-quality diesel fuel and replace fuel filters according to the service schedule. Consider using a fuel additive to prevent gelling in cold weather.
- Seasonal Storage: Before storing the tractor for the off-season, fill the fuel tank to prevent condensation, change the engine oil, lubricate all grease fittings, and disconnect the battery.
4960 History & Background
Introduced in 1992 as part of the John Deere 60 series, the 4960 represented a step forward in tractor technology and operator comfort. While it didn't undergo major redesigns during its short production run, it solidified John Deere's reputation for building powerful and reliable agricultural tractors.
Frequently Asked Questions
Which exhaust manifold gasket is suitable for the John Deere 4960?
The R83021 - Gasket, Exhaust Manifold is a suitable replacement for the John Deere 4960.
What PTO clutch disc fits the John Deere 4960?
The RE23286 - Disc, PTO Clutch is recommended for the John Deere 4960.
Which selective control valve is suitable for the John Deere 4960?
The AR86535 - Selective Control Valve is a common replacement part for the John Deere 4960.
What are some common replacement parts for the John Deere 4960?
Many parts are commonly replaced on the John Deere 4960. You may need an AR94516 - Disc, Direct Drive Clutch, an AR31946 - Brake Valve Overhaul Kit, or an RE49169 - Receiver Drier. Other popular replacements include the R65570 - Bushing; Cab Door Hinge, AL78021 - Mirror Head; LH/RH Outer Rear View, and RE336111 - Lamp, Worklight; LED, Flood.

T20328 - Oil Filler Cap Gasket
SKU: T20328
48 in stock

RE520036 - Rear Crankshaft Seal
SKU: RE520036
236 in stock

T20129 - Valve Stem Cap
SKU: T20129
155 in stock

T20077 - Valve Keeper
SKU: T20077
1248 in stock

RE65265 - Hand Primer
SKU: RE65265
176 in stock

RE63291 - Engine Oil Pressure Sender
SKU: RE63291
7 in stock

RE62777 - Exhaust Manifold; Outer (2/Pack) Gasket
SKU: RE62777
896 in stock

RE53507 - Fuel Shut Off Solenoid
SKU: RE53507
47 in stock

RE53422 - Crankshaft w/ A-R26049 Gear
SKU: RE53422
42 in stock

RE524640 - Overhaul without Seals Gasket Set
SKU: RE524640
12 in stock

RE524105 - Oil Cooler To Block Gasket
SKU: RE524105
205 in stock

RE52109 - Injector
SKU: RE52109
134 in stock

RE507076 - Engine Oil Pump
SKU: RE507076
43 in stock

RE48380 - Piston Rings
SKU: RE48380
37 in stock

RE47785 - Coolant Temperature Sensor
SKU: RE47785
75 in stock

RE47336 - Head Gasket
SKU: RE47336
15 in stock

RE46364 - Injector
SKU: RE46364
5 in stock

RE40048 - Exhaust Clamp
SKU: RE40048
80 in stock

RE29859 - Upper Gasket Set
SKU: RE29859
7 in stock

RE29308 - Turbocharger
SKU: RE29308
37 in stock

RE25998 - Turbocharger
SKU: RE25998
1 in stock

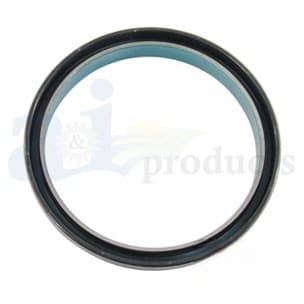

RE22764 - Rear Crankshaft Seal
SKU: RE22764
236 in stock

RE54816 - BEARING SET
SKU: RE54816
42 in stock

RE12326 - Outer Tie Rod
SKU: RE12326
164 in stock
