John Deere 3330 Tractor Parts
Find parts for your John Deere 3330 Tractor. We stock OEM and quality aftermarket replacements ready to ship.
The John Deere 3330 tractor, manufactured from 2008 to 2014, provided reliable performance for various farming operations. Powered by a John Deere PowerTech 4.5L diesel engine producing approximately 95 horsepower, and boasting around 80 PTO horsepower, this model was popular for its versatility in handling tasks from hay baling to light tillage, making it a valuable asset on the farm.
About the 3330
The John Deere 3330 was introduced as part of the John Deere '30' series tractors, offering a balance of power and maneuverability for mid-sized farming operations. Production spanned from 2008 to 2014. It features a John Deere PowerTech 4.5L 4-cylinder diesel engine, producing around 95 engine horsepower. This engine provides robust and efficient power for a range of tasks. The transmission is typically a PowrQuad Plus transmission, offering synchronized gear shifting for smooth operation. PTO horsepower is approximately 80, available with 540 RPM. Hydraulic capacity is around 22.5 GPM, usually equipped with two to three rear remotes. It features a Category II 3-point hitch with a lift capacity of approximately 5,500 lbs. The 3330 found use in diverse applications like row crop cultivation, hay production, livestock operations, and light tillage. Compared to smaller frame tractors, the 3330 offered increased power and hydraulic capacity, while remaining more compact and agile than larger row-crop models.
3330 Specifications
| Engine | John Deere PowerTech 95 HP 4.5L Diesel |
|---|---|
| PTO HP | 80 HP @ 540 RPM |
| Transmission | PowrQuad Plus Partial Power Shift 16F/16R |
| Hydraulics | 22.5 GPM, 2-3 remotes |
| 3-Point Hitch | Category II, 5500 lbs |
| Fuel Capacity | 34 gallons |
| Weight | 9,260 lbs |
| Years Produced | 2008-2014 |
3330 Maintenance Tips
- Engine Oil & Filter: Change the engine oil and filter every 250 hours using John Deere-approved oil and filters. Regularly check the oil level.
- Hydraulic System: Inspect hydraulic fluid levels and change the hydraulic filters every 500 hours or annually to prevent contamination and ensure smooth operation.
- Fuel System: Use clean, high-quality diesel fuel and change the fuel filter every 500 hours. Drain water from the fuel/water separator regularly.
- Seasonal Storage: Before storing your tractor for the off-season, completely fill the fuel tank to prevent condensation, grease all lubrication points, and disconnect the battery. Consider adding fuel stabilizer.
3330 History & Background
The John Deere 3330 was released as part of the John Deere '30' Series, which aimed to provide more technologically advanced and comfortable tractors to farmers. The 3330 offered improvements over previous models in terms of engine efficiency and hydraulic performance. It played a significant role in meeting the demand for versatile utility tractors.
Frequently Asked Questions
Which piston liner kit fits the John Deere 3330?
For the John Deere 3330, the recommended piston liner kit is the RE30250 - Piston Liner Kit.
What connecting rod is suitable for the John Deere 3330 engine?
A suitable connecting rod for the 3330 engine is the RE16495 - Connecting Rod.
Which engine oil cooler is recommended for the John Deere 3330?
The recommended engine oil cooler for the John Deere 3330 is the RE31929 - Cooler, Engine Oil.
What are some common replacement parts for the John Deere 3330 engine?

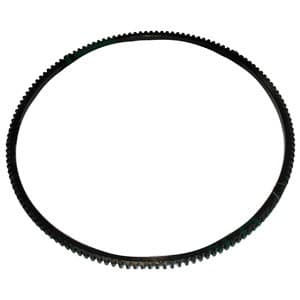

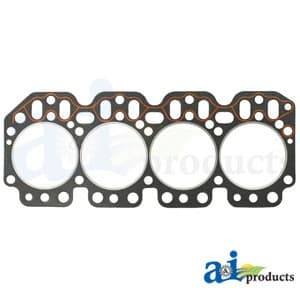

For regular maintenance and common repairs, consider parts such as the AR89564 - Injector, Pencil, R92425 - Gasket, Head, AR92893 - Seal, Rear Crankshaft W/ Wear Sleeve, RE27348 - Bearing, Connecting Rod (Std), R79623 - Valve, Intake (Std), and R114282 - Ring Gear, Flywheel.

T26321 - Lower Bushing
SKU: T26321
69 in stock

RE27348 - Connecting Rod (Std) Bearing
SKU: RE27348
1575 in stock

T20129 - Valve Stem Cap
SKU: T20129
155 in stock

T20094 - Crankshaft Gear
SKU: T20094
5 in stock

T20077 - Valve Keeper
SKU: T20077
1248 in stock

T20073 - Camshaft Follower
SKU: T20073
131 in stock

T20070 - Camshaft Gear
SKU: T20070
13 in stock

T20034 - Upper Bushing
SKU: T20034
21 in stock

RE519736 - Rocker Shaft
SKU: RE519736
7 in stock

RE508317 - W/ Adjusting Screw Rocker Arm
SKU: RE508317
64 in stock

RE48818 - Piston Rings
SKU: RE48818
63 in stock

RE38857 - Overhaul without Seals Gasket Set
SKU: RE38857
51 in stock

RE38851 - Upper Gasket Set
SKU: RE38851
24 in stock

RE31929 - Engine Oil Cooler
SKU: RE31929
27 in stock

RE30250 - Piston Liner Kit
SKU: RE30250
115 in stock

RE27364 - Connecting Rod (.030") Bearing Set
SKU: RE27364
24 in stock

RE27358 - Connecting Rod (.020") Bearing Set
SKU: RE27358
193 in stock

RE27349 - Connecting Rod (.010") Bearing Set
SKU: RE27349
626 in stock

RE26283 - Balancer with Gear (LH) Shaft
SKU: RE26283
30 in stock

RE26282 - Balancer w/ Gear (RH) Shaft
SKU: RE26282
2 in stock

RE20585 - Crankshaft
SKU: RE20585
9 in stock

RE19282 - PISTON
SKU: RE19282
30 in stock

IK86992 - In Frame Engine Overhaul Kit
SKU: IK86992
22 in stock

RE16495 - Connecting Rod
SKU: RE16495
127 in stock
