John Deere X520 Riding Mower Parts

Jump to Parts

The John Deere X520 is a premium lawn tractor produced from 2006 to 2015, known for its robust performance and durability. Powered by a Kawasaki V-twin engine, it offers ample power for tackling demanding mowing tasks. Equipped with features like a heavy-duty hydrostatic transmission and available with 48- or 54-inch mower decks, the X520 delivers a quality cut and a comfortable operator experience.

The John Deere X520 was introduced as part of the Select Series, positioned above the entry-level models and offering enhanced features and capabilities for the discerning homeowner. It's powered by a Kawasaki FS730V engine, a 25.5 HP (19.0 kW) V-twin with a displacement of 726cc. This engine provides smooth and reliable power for mowing, mulching, and bagging. The X520 features a heavy-duty hydrostatic transmission with power steering, offering effortless control and maneuverability. It was available with either a 48-inch or 54-inch mower deck, providing options for different yard sizes and mowing preferences. Key features include a high-back seat for comfort, hydraulic deck lift for easy adjustments, and a durable frame for long-lasting performance. The X520 is ideal for residential properties with larger lawns or challenging terrain, distinguishing itself from lower-end models with its superior build quality, powerful engine, and advanced features. Compared to the X300 series, the X500 boasts more power and heavier-duty components.

Specifications

Engine	Kawasaki 25.5 HP 726cc V-Twin
Transmission	Hydrostatic
Deck Size	48 / 54 inches
Ground Speed	0-8.5 mph
Fuel Capacity	4.4 gallons
Weight	795 lbs
Years Produced	2006-2015

Maintenance Tips

Belt Inspection: Regularly inspect mower deck and drive belts for wear or damage. Replace belts every 2-3 years, or sooner if cracks or fraying are visible.
Blade Sharpening: Sharpen mower blades at least twice a season for a clean and healthy cut. Dull blades tear grass, making it susceptible to disease.

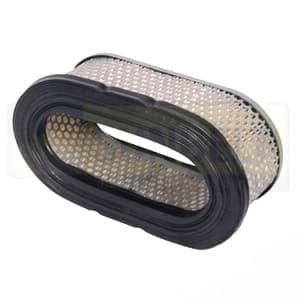

Filter Changes: Change the engine oil and filter annually, or every 50 hours of use. Replace the air filter at least once a season to ensure proper engine performance.
Seasonal Storage: Before storing the X520 for the winter, stabilize the fuel, change the oil and filter, and disconnect the battery. Store the mower in a dry, protected location.

History & Background

The John Deere X520 was part of the X500 Select Series, introduced in 2006 as a premium lawn tractor. It remained largely unchanged throughout its production run, solidifying its position as a reliable and capable machine for demanding residential use. The X520 was eventually replaced by updated models within the John Deere lineup.

Frequently Asked Questions

What size deck does the John Deere X520 have?

The John Deere X520 was available with either a 48-inch or a 54-inch mower deck.

What engine is in the John Deere X520?

The John Deere X520 is powered by a Kawasaki FS730V 25.5 horsepower V-twin engine.

What belt do I need for my John Deere X520?

The John Deere X520 uses a specific deck belt depending on the deck size. Refer to your John Deere X520's parts manual or use the parts lookup feature on our site to find the correct belt. You may also need a drive belt from the engine to the transmission; check your manual for the correct part number.

What blades fit the John Deere X520?

The blade length for the John Deere X520 depends on whether it has a 48-inch or 54-inch deck. Blades for the 48-inch deck are typically around 16.5 inches long, while the blades for the 54-inch deck are approximately 18.5 inches long. Be sure to order the correct length and check the center hole diameter and star pattern to ensure compatibility.

Showing 25-48 of 55 products
