Case IH 544 Tractor Parts

544 parts and accessories

The Case IH 544 tractor, manufactured from 1968 to 1975, was a versatile workhorse in its time. Powered by either a gasoline or diesel engine delivering around 52-66 horsepower, and a PTO horsepower around 45-58, the 544 earned a solid reputation for its reliability and adaptability in various farming tasks. Farmers appreciated its robust build and ease of operation, making it a popular choice for smaller to medium-sized farms.

The Case IH 544 was introduced in 1968 as part of the International Harvester (IH) line, before the Case IH merger. Production continued until 1975. It came in both gasoline and diesel engine options. The gasoline version used an IH C-263 engine, producing around 66 horsepower, while the diesel version featured an IH D-239 engine, producing around 52 horsepower. Both engines were naturally aspirated. The tractor featured a gear-type transmission, typically with 8 forward and 2 reverse speeds. PTO horsepower was rated around 58 for the gasoline version and 45 for the diesel, available in a standard 540 RPM configuration. The hydraulic system delivered approximately 9 GPM to power implements and the 3-point hitch. The 3-point hitch was a Category II hitch. The 544 was commonly used for row crop work, hay baling, livestock feeding operations, and light tillage. It distinguished itself with a heavier frame and increased power compared to smaller utility tractors in the IH lineup, providing a more capable platform for diverse farm tasks.

Specifications

Engine	IH C-263 66 HP Gas / IH D-239 52 HP Diesel
PTO HP	58 HP (Gas) / 45 HP (Diesel) @ 540 RPM
Transmission	Gear Type, 8 Forward / 2 Reverse
Hydraulics	9 GPM, 2 remotes (optional)
3-Point Hitch	Category II, 3800 lbs Lift Capacity (at 24 inches)
Fuel Capacity	21.5 gallons (Gas) / 20 gallons (Diesel)
Weight	5500 lbs (approximate)
Years Produced	1968-1975

Maintenance Tips

Engine Oil & Filter: Change the engine oil and filter every 125-250 hours of operation, depending on operating conditions. Use an oil that meets or exceeds the manufacturer's specifications for diesel or gasoline engines.
Hydraulic System: Check the hydraulic fluid level regularly and change the hydraulic fluid and filter every 500-750 hours. Use the correct type of hydraulic fluid to prevent damage to seals and components.
Fuel System: Use clean, fresh fuel and replace the fuel filter every 250-500 hours, especially if using low-quality fuel. For diesel models, ensure the fuel system is properly primed after filter changes.
Seasonal Storage: Before storing the tractor for the winter, fill the fuel tank to prevent condensation, change the engine oil and filter, and grease all lubrication points. Disconnect the battery or use a battery tender to prevent discharge.

History & Background

The Case IH 544 was part of International Harvester's line of tractors designed to provide a balance of power and versatility for a wide range of farm tasks. While it didn't undergo major redesigns during its production run, it represented a solid, dependable tractor design for the late 1960s and early 1970s. Its success contributed to IH's reputation for building durable and practical agricultural equipment.

Frequently Asked Questions

What engine is in the Case Ih 544?

The Case IH 544 came with two engine options: an IH C-263 gasoline engine producing around 66 horsepower, or an IH D-239 diesel engine producing around 52 horsepower. Both engines were naturally aspirated inline four-cylinder designs.

What is the PTO horsepower on a 544?

The PTO horsepower on the Case IH 544 varied depending on the engine. The gasoline version had approximately 58 PTO horsepower, while the diesel version had around 45 PTO horsepower. Both operated at a standard 540 RPM PTO speed.

What oil filter fits the 544?

For the IH C-263 gasoline engine, common oil filter cross-references include Fram PH8A, Wix 51060, and Napa 1060. For the IH D-239 diesel engine, common cross-references include Fram PH5, Wix 51258, and Napa 1258. Always verify compatibility with your specific engine before installation.

What are common parts needed for the 544?

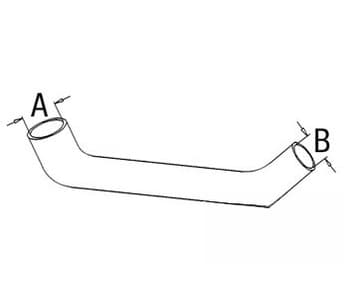

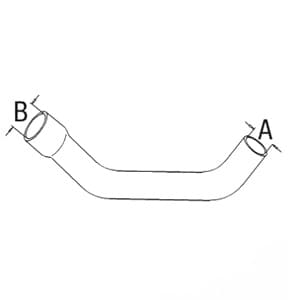

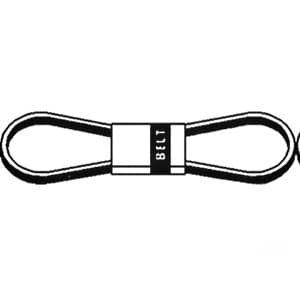

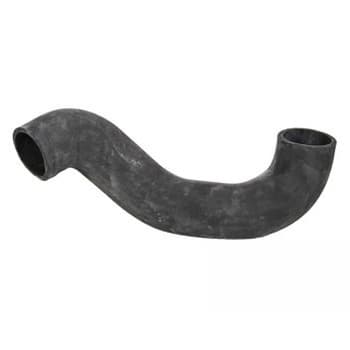

Common wear parts for the Case IH 544 include engine oil filters, fuel filters, air filters, hydraulic filters, fan belts, radiator hoses, hydraulic cylinder seals, steering components (tie rod ends, ball joints), clutch discs and pressure plates, and brake components.

Showing 265-288 of 317 products

Sort by:
