Case IH 9240 Combine Parts

9240 parts and accessories

Looking for Case IH 9240 combine parts? The Case IH 9240, manufactured from 2012-2016, is a powerful Class 9 combine featuring a robust engine boasting over 400 horsepower. Known for its impressive throughput and efficient grain handling, the 9240 offered header widths up to 45 feet and uses an Axial-Flow rotary separator, making it a favorite among farmers for harvesting a wide range of crops.

The Case IH 9240 was introduced as part of the 240 series combine lineup, produced from 2012 to 2016. These combines were designed to increase productivity for larger farming operations. Powering the 9240 is an Iveco FPT 12.9L engine, delivering a rated 402 horsepower, with a peak power of 442 HP. The engine is a six-cylinder turbocharged diesel offering excellent torque and fuel efficiency. The 9240 utilizes a single Axial-Flow rotary separator for threshing and separating grain, offering high capacity and gentle grain handling. Grain is stored in a generous 350-bushel grain tank, and unloading is rapid, with an unloading auger capable of discharging grain at a rate of 4.5 bushels per second (270 bu/min). The Case IH 9240 accommodates a wide range of header widths, typically from 30 to 45 feet, to optimize harvest speeds. Chopper and spreader options are available to manage crop residue effectively. The cab offers excellent visibility and operator comfort, featuring advanced technology for monitoring and controlling combine performance. The Case IH 9240 excels at harvesting corn, soybeans, wheat, and other small grains.

Specifications

Engine	Iveco FPT 12.9L 402 HP Diesel
Separator Type	Axial-Flow Rotary - Single Rotor 30 inch diameter
Grain Tank	350 bushels
Unloading Rate	270 bu/min
Header Widths	30-45 ft
Fuel Capacity	250 gallons
Weight	36,800 lbs
Years Produced	2012-2016

Maintenance Tips

Concave Adjustment: Regularly inspect and adjust concave clearance according to the crop being harvested. Proper concave settings minimize grain loss and damage.
Belt and Chain Tension: Check belt and chain tension before each harvest day. Loose belts and chains can cause slippage, reduced performance, and premature wear.
Sieve and Chaffer Cleaning: Regularly clean the sieves and chaffer to remove debris and ensure proper airflow. Clogged sieves reduce cleaning efficiency and increase grain loss.
Bearing Greasing: Follow the manufacturer's recommended greasing schedule for all bearings. Proper lubrication extends bearing life and prevents costly breakdowns.

History & Background

The Case IH 9240 was introduced in 2012 as part of the 240 series combine family, replacing earlier models and showcasing advancements in engine technology, separator design, and grain handling capacity. As a Class 9 combine, the 9240 offered increased productivity and efficiency for larger farms, building upon the legacy of Case IH's Axial-Flow combine technology.

Frequently Asked Questions

What engine is in the Case Ih 9240?

The Case IH 9240 is equipped with an Iveco FPT 12.9L six-cylinder diesel engine that produces 402 rated horsepower and 442 peak horsepower.

What is the grain tank capacity on a 9240?

The Case IH 9240 has a grain tank capacity of 350 bushels with an unloading rate of 270 bushels per minute.

What type of separator does the 9240 have?

The Case IH 9240 utilizes a single Axial-Flow rotary separator with a 30-inch diameter rotor for threshing and separating grain.

What are common parts needed for the 9240?

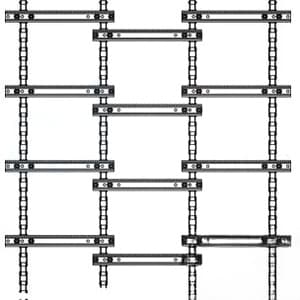

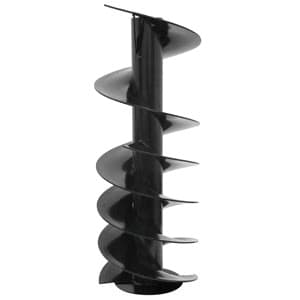

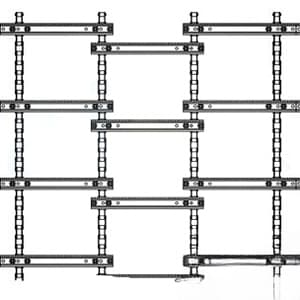

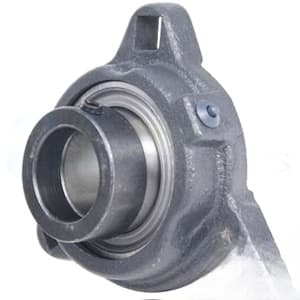

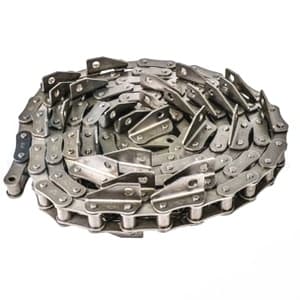

Common wear parts for the Case IH 9240 include concaves, rasp bars, feeder house chains, belts, bearings, auger flighting, unloading auger tubes and boots, sickle sections, guards, and knife drive components.
