Details

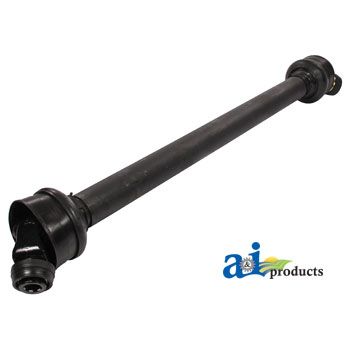

Complete Driveline with quick disconnect yokes. Minimum C-to C Length: 48" (1210 mm), Maximum C-to-C
Length: 74" (1880 mm), Total collapsed length: 58" (1462 mm). Tractor end: 1-3/8" 6 Spline,
Implement end: 1-3/8" 6 Spline. Lemon style tubing, type A. Rated category 4 (53 hp). NOTE: It may
be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap
of the drive tubes exists in all working positions without the possibility of bottoming out. Fits
Walterscheid W Series.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size
2400
Total Collapsed Length
1462 MM/ 58"
Tractor
1 3/8" - 6
Implement
1 3/8" - 6
Tube Style
A
C to C Min
1210 MM/ 48"
C to C Max
1880 MM/ 74"
Category
4 (53HP)
Cross References:
Replaces:
W2400-0860-A
EDCOR
W2400-1010-A
EDCOR
W2400-1210-A
EDCOR
W2400-610-A
EDCOR
W24001210-A
EDCOR
506950001
VERMEER
Crossed From:
SW06313
JOHN DEERE EDI
Fits the following makes and models:
Walterscheid W Series: 2400
Additional Information
