Massey Ferguson 520 Combine Parts
Shop Massey Ferguson 520 Combine parts. From filters and fluids to blades and belts, we carry the replacements you need to keep running.
The Massey Ferguson 520 combine, produced from 1979 to 1985, was a popular choice for farmers seeking a reliable and efficient grain harvesting solution. Powered by a Perkins diesel engine delivering approximately 155 horsepower, the 520 was capable of handling various header widths, typically ranging from 13 to 20 feet. Its conventional threshing system made it a favored machine for harvesting small grains and soybeans.
About the 520
The Massey Ferguson 520 combine, manufactured between 1979 and 1985, built upon the legacy of earlier MF combines and provided a step up in capacity and features. It was equipped with a robust Perkins A6.354 naturally aspirated diesel engine, producing around 155 horsepower with a displacement of 354 cubic inches. This engine provided ample power for the combine's operations. The 520 featured a conventional threshing system with a 48-inch wide cylinder and walkers, known for gentle grain separation. Grain tank capacity was approximately 145 bushels, and it had an unloading auger rate of around 45 bushels per minute. Header widths ranged from 13 feet to 20 feet, allowing flexibility in different field conditions. Chopper and spreader options were available to manage residue. The cab provided a comfortable operating environment, contributing to operator productivity. The MF 520 was particularly well-suited for harvesting wheat, soybeans, and other small grains.
520 Specifications
| Engine | Perkins A6.354 155 HP Diesel |
|---|---|
| Separator Type | Conventional - 48 inch cylinder width |
| Grain Tank | 145 bushels |
| Unloading Rate | 45 bu/min |
| Header Widths | 13-20 ft |
| Fuel Capacity | 65 gallons |
| Weight | Approx. 16,000 lbs |
| Years Produced | 1979-1985 |
520 Maintenance Tips
- Concave Adjustment: Regularly inspect and adjust the concave clearance to ensure optimal threshing performance, minimizing grain loss and damage. Proper adjustment is crucial for different crop types.
- Belt and Chain Tension: Maintain proper tension on all belts and chains. Check for wear and replace as needed to prevent slippage and ensure smooth operation of the combine's various systems.
- Sieve and Chaffer Cleaning: Regularly clean the sieves and chaffer to remove debris and chaff, preventing blockages and maintaining efficient grain cleaning and separation.
- Bearing Greasing: Grease all bearings according to the manufacturer's recommendations to prevent premature wear and ensure smooth, reliable operation of rotating components.
520 History & Background
The Massey Ferguson 520 combine was introduced in 1979 as part of the Super 500 series, offering increased capacity compared to its predecessors. While not undergoing radical redesigns during its production run, the 520 became a respected combine known for its simplicity, reliability, and effectiveness in harvesting various grain crops, contributing to Massey Ferguson's presence in the combine market.
Frequently Asked Questions
Which water pump is recommended for the Massey Ferguson 520 combine?
The recommended water pump for the Massey Ferguson 520 combine is 3641861M91 - Pump, Water.
What rear crankshaft seal fits the Massey Ferguson 520?
For the Massey Ferguson 520, the correct rear crankshaft seal is 303158411 - Seal, Rear Crankshaft Viton.
Which primary air filter should I use for the Massey Ferguson 520 combine?
A suitable primary air filter for the Massey Ferguson 520 combine is AF409K - Filter, Air, Primary (QTY 1).
What are common parts needed for the 520?
Common wear and maintenance parts for the Massey Ferguson 520 combine include:

3641861M91 - Water Pump
SKU: 3641861M91
15 in stock

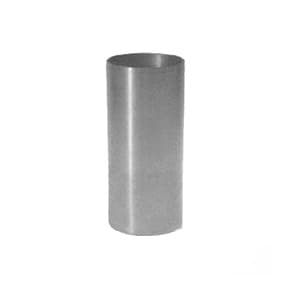

734644M1 - Cylinder (Semi-Finished) Liner
SKU: 734644M1
23 in stock

4222110M91 - Fuel Pump Repair Kit
SKU: 4222110M91
57 in stock

3641224M1 - Rear Main Housing Gasket
SKU: 3641224M1
8 in stock

303158411 - Rear Crankshaft Viton Seal
SKU: 303158411
161 in stock

W159044AS - FUEL FILTER
SKU: W159044AS
1460 in stock

AF814 - Primary (QTY 1) Air Filter
SKU: AF814
7 in stock

AF409K - Primary (QTY 1) Air Filter
SKU: AF409K
82 in stock

836218M91 - Fuel Filter
SKU: 836218M91
1460 in stock

70251397 - Diesel Fuel Filter
SKU: 70251397
1460 in stock

33166 - FUEL FILTER
SKU: 33166
1460 in stock

207100980 - Fuel Filter
SKU: 207100980
1460 in stock

20315106 - Fuel Filter
SKU: 20315106
1460 in stock

1049939M91 - Fuel Filter
SKU: 1049939M91
1460 in stock

1049939M1 - Diesel Fuel Filter
SKU: 1049939M1
1460 in stock
