John Deere X304 Riding Mower Parts
Browse John Deere X304 Riding Mower replacement parts. Everything from routine maintenance items to hard-to-find components.
The John Deere X304, part of the Select Series, was known for its all-wheel steering, providing exceptional maneuverability. Manufactured from approximately 2006 to 2017, it features a Kawasaki 17 HP engine and a 42-inch deck, making it a popular choice for homeowners with slightly larger, more complex lawns requiring precision mowing.
About the X304
The John Deere X304 was introduced as part of the X300 Select Series, designed to provide premium features for residential users. It's powered by a Kawasaki FH491V twin-cylinder engine, producing 17 horsepower (SAE J1940 rated). This engine provides ample power for the 42-inch Edge mower deck. A key feature of the X304 is its four-wheel steering system, allowing for tight turns and exceptional maneuverability around obstacles, a significant advantage compared to standard lawn tractors. The transmission is a Tuff Torq K46 hydrostatic unit, providing smooth, variable speed control. Unlike some models in the John Deere lineup which target acreage owners or commercial use, the X304 is primarily designed for residential lawns requiring a higher level of precision and maneuverability. The X304 stands out from the entry-level D100 series due to its more robust engine, hydrostatic transmission, and advanced steering system. It offered a step up in performance and features compared to the LA series as well.
X304 Specifications
| Engine | Kawasaki 17 HP FH491V Twin-Cylinder |
|---|---|
| Transmission | Tuff Torq K46 Hydrostatic |
| Deck Size | 42 inches |
| Ground Speed | 0-5.5 mph |
| Fuel Capacity | 3.3 gallons |
| Weight | 540 lbs |
| Years Produced | 2006-2017 (Approx.) |
X304 Maintenance Tips
- Belt Replacement: Inspect deck and drive belts annually and replace every 2-3 years, or sooner if cracks or fraying are visible.
- Blade Sharpening: Sharpen mower blades at least twice per mowing season for a clean, healthy cut. Dull blades tear grass, making it susceptible to disease.
- Filter Changes: Change the engine oil and filter annually, or every 50 hours of operation. Also, clean or replace the air filter regularly to maintain engine performance.
- Seasonal Storage: Before storing your X304 for the winter, stabilize the fuel, change the oil, and disconnect the battery. This will help prevent starting issues in the spring.
X304 History & Background
The John Deere X304 was part of the X300 Select Series, introduced to offer premium residential lawn tractors. It distinguished itself with its four-wheel steering system. Over its production run, it remained largely unchanged, cementing its place as a reliable and maneuverable option in the John Deere lineup.
Frequently Asked Questions
Which deck belt fits the 42-inch mower deck on the John Deere X304?
For the 42-inch mower deck, the recommended replacement belt is M154621 - Belt, Deck 42" Edger.
Which air filter is recommended for the John Deere X304?
The recommended air filter for the X304's engine is B1AF274 - Air Filter; 11013-7047, 11013-7049.
Which drive belt fits the John Deere X304?
For the John Deere X304, a suitable replacement drive belt is M110313 - Belt, Drive.
What mower blades are available for the John Deere X304?
The X304 typically uses two blades around 21 inches. We stock several options including the B1JD6016 - BLADE-MOWER, XHT, 21-1/2", 7 LOBE, the B1JD6023 - BLADE-MOWER, XHT, 21-3/8", 7 LOBE, MULCH for mulching, and the B1PD5016 - BLADE-MOWER, PRED, 21-3/8", 7 LOBE for aggressive cutting.

M40514 - External; 10/Pack Snap Ring
SKU: M40514
300 in stock

54M4422 - Yoke
SKU: 54M4422
33 in stock

MIU10981 - Starter Solenoid
SKU: MIU10981
187 in stock

MIA11564 - Starter
SKU: MIA11564
97 in stock

57M9880 - 12 Amp Relay
SKU: 57M9880
62 in stock

LF3614J - Spin-On (QTY 1) Lube Filter
SKU: LF3614J
Out of stock

LF3614 - Spin-On (QTY 12) Lube Filter
SKU: LF3614
26 in stock

VG11696 - YLW Vinyl 18" Seat
SKU: VG11696
789 in stock

LGT125YL - Yellow Vinyl Skidsteer Tractor UTV Lawn & Garden Seat
SKU: LGT125YL
301 in stock

LGT125GR - Gray Vinyl Skidsteer Tractor UTV Lawn & Garden Seat
SKU: LGT125GR
24 in stock

LGT125BL - Black Vinyl Skidsteer Tractor UTV Lawn & Garden Seat
SKU: LGT125BL
53 in stock

AM136044 - Seat Assembly
SKU: AM136044
459 in stock

6003AB - Adapter Bracket
SKU: 6003AB
80 in stock

AM140333 - Choke/Throttle Assy w/ Cables Accelerator
SKU: AM140333
155 in stock

AM102726 - Ball Bearing
SKU: AM102726
33 in stock

MIU800783 - Drive Pulley
SKU: MIU800783
6 in stock

B1JD75 - Flat Idler Pulley
SKU: B1JD75
Out of stock

AUC11239 - Flat Idler Pulley
SKU: AUC11239
304 in stock

AUC11238 - V-Idler Pulley
SKU: AUC11238
360 in stock

AM135957 - V-Idler Pulley Assembly
SKU: AM135957
157 in stock

AM118447 - Idler Pulley
SKU: AM118447
178 in stock

M156416 - 12MM Lock Nut
SKU: M156416
1433 in stock

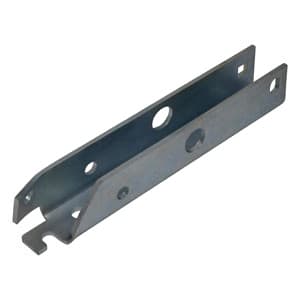

M155560 - Idler Arm
SKU: M155560
149 in stock

B1JD70 - Spindle Assembly
SKU: B1JD70
773 in stock
