John Deere LA100 Riding Mower Parts
Find parts for your John Deere LA100 Riding Mower. We stock OEM and quality aftermarket replacements ready to ship.
The John Deere LA100 was part of the LA series, manufactured from 2007 to 2014, and designed for residential use. Powered by a Briggs & Stratton engine, it offered reliable performance for homeowners. Available with a 42-inch mower deck, the LA100 gained popularity as a dependable and affordable option for maintaining smaller to medium-sized lawns.
About the LA100
The John Deere LA100 lawn tractor was introduced in 2007 as part of the LA series, intended to replace older models and provide an updated residential mowing solution. It featured a Briggs & Stratton single-cylinder engine, typically around 17 horsepower and displacing approximately 500cc, providing adequate power for its intended use. The LA100 uses an automatic transmission, making it easy to operate for a wide range of users. It came standard with a 42-inch mower deck, designed for efficient grass cutting on lawns up to an acre in size. Key features of the LA100 included a comfortable seat, easy-to-use controls, and a durable steel frame. It distinguishes itself from entry-level models with improved features and build quality, while remaining more affordable than the premium Select Series like the X300. Primarily used for residential lawn mowing, the LA100 offers a balance of performance and value.
LA100 Specifications
| Engine | Briggs & Stratton 17 HP 500cc Single Cylinder |
|---|---|
| Transmission | Automatic |
| Deck Size | 42 inches |
| Ground Speed | 5.5 mph |
| Fuel Capacity | 2.4 gallons |
| Weight | 465 lbs |
| Years Produced | 2007-2014 |
LA100 Maintenance Tips
- Replace the mower deck belt every 200-300 hours of use to ensure optimal cutting performance and prevent belt failure.
- Sharpen mower blades at least twice per season, or more frequently if you encounter rocky or sandy soil conditions. Dull blades tear the grass, increasing the risk of disease.
- Change the engine oil and filter every 50 hours of operation, or at least once a year, to maintain engine health and longevity.
- Before storing the LA100 for the winter, stabilize the fuel with a fuel stabilizer additive to prevent fuel breakdown and carburetor issues. Disconnect the battery and store it in a cool, dry place.
LA100 History & Background
The John Deere LA100 was introduced in 2007 as a mid-range lawn tractor in the LA Series. It offered a balance of features and affordability for residential users. The LA series was eventually replaced by the E series in 2018, but the LA100 remains a popular choice for homeowners seeking reliable lawn care.
Frequently Asked Questions
Which spindle assembly fits the John Deere LA100 42-inch mower deck?
For the 42-inch mower deck on the John Deere LA100, the B1JD45 - Spindle Assy, JD GY21098 is a direct replacement. This assembly is designed to match the original equipment specifications.
Which air filter is recommended for the John Deere LA100 engine?
To maintain engine performance, the B1AF211 - Air Filter is recommended for the John Deere LA100. It provides excellent filtration against dust and debris, ensuring clean air intake.
What deck and drive belts are recommended for the John Deere LA100?
For the 42-inch mower deck on the John Deere LA100, the GX20072 - Belt, Blade Drive is a suitable replacement. For the main drive belt connecting the engine to the transmission, consider the M125218 - Belt, Drive. Always confirm part compatibility with your model's specifications.
What replacement mower blades are available for the John Deere LA100?
For your John Deere LA100 with a 42-inch deck, several high-quality blade options are available. Consider the B1JD6016 - BLADE-MOWER, XHT, 21-1/2", 7 LOBE for general use, or the B1JD6022 - BLADE-MOWER, XHT, 21-3/8", 7 LOBE, HL for a high-lift option. For mulching performance, the B1JD6023 - BLADE-MOWER, XHT, 21-3/8", 7 LOBE, MULCH is an excellent choice. Ensure you always replace both blades for balanced cutting.

MIA11377 - Camshaft
SKU: MIA11377
77 in stock

AD2062R - Light Bulb
SKU: AD2062R
115 in stock

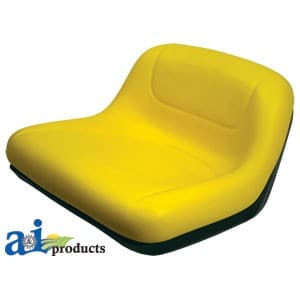

GY20495 - Mid Back Lawn Tractor Seat
SKU: GY20495
930 in stock

GY21106 - PTO Cable
SKU: GY21106
159 in stock

B1JD23 - V-Idler
SKU: B1JD23
81 in stock

B1JD22 - Flat Idler
SKU: B1JD22
398 in stock

B1JD20 - Flat Idler
SKU: B1JD20
414 in stock

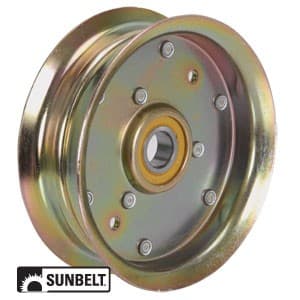

B1JD11 - Flat Idler
SKU: B1JD11
Out of stock

AM118447 - Idler Pulley
SKU: AM118447
178 in stock

M156416 - 12MM Lock Nut
SKU: M156416
1433 in stock

GY22252 - LH Spindle
SKU: GY22252
57 in stock

GY22251BLE - Steering Wheel; RH Spindle Kit
SKU: GY22251BLE
63 in stock

GY21251 - RH - Adjustable Drag Link
SKU: GY21251
44 in stock

GY21250 - LH - Adjustable Drag Link
SKU: GY21250
50 in stock

GX25785 - Steering Sector Gear
SKU: GX25785
703 in stock

GX24864 - JOHN DEERE
SKU: GX24864
188 in stock

GX21994 - Steering Shaft Bushing
SKU: GX21994
1796 in stock

GX21718 - Trunnion
SKU: GX21718
577 in stock

GX21694 - Blade Mounting; 5/8" Lock Nut
SKU: GX21694
1810 in stock

GX20053 - Steering Pinion Gear
SKU: GX20053
85 in stock

B1SB11449 - JOHN DEERE GX20367 7" SPINDLE PULLEY
SKU: B1SB11449
258 in stock

B1JD46 - JD GY21099 Spindle Assy
SKU: B1JD46
223 in stock

B1JD45 - JD GY21098 Spindle Assy
SKU: B1JD45
1142 in stock

B1JD36 - Spindle Mounting Bolt
SKU: B1JD36
3024 in stock
