Case IH 856 Combine Parts
Browse Case IH 856 Combine replacement parts. Everything from routine maintenance items to hard-to-find components.
The Case IH 856 combine, produced from 1979-1985, was a popular choice for farmers needing a reliable conventional harvesting solution. Powered by a robust engine delivering around 175 HP, it handled a variety of crops. Available header widths ranged from 13 to 20 feet, allowing for efficient harvesting across different field sizes. Its conventional separator design provided a dependable threshing action.
About the 856
The Case IH 856 combine was introduced in 1979 and remained in production until 1985. This model quickly gained a reputation for its robust construction and ability to handle a wide range of crops. The 856 is powered by an IH DT-414 6.8L (414 cu in) diesel engine, delivering approximately 175 horsepower. This engine provided ample power for cutting, threshing, and separating grain. The 856 utilizes a conventional threshing system, featuring a 50-inch wide cylinder and a large concave area for efficient grain separation. The grain tank holds around 150 bushels. An unloading auger discharges grain at a rate of approximately 60 bushels per minute. Available header widths ranged from 13 to 20 feet. The 856 offered options for straw choppers and spreaders. The cab provided operators with essential controls and decent visibility for its time. This combine was particularly well-suited for harvesting wheat, soybeans, and corn, and other small grains.
856 Specifications
| Engine | IH DT-414 175 HP 6.8L Diesel |
|---|---|
| Separator Type | Conventional - 50-inch cylinder |
| Grain Tank | 150 bushels |
| Unloading Rate | 60 bu/min |
| Header Widths | 13-20 ft |
| Fuel Capacity | 75 gallons |
| Weight | Approx. 16,000 lbs |
| Years Produced | 1979-1985 |
856 Maintenance Tips
- Concave Adjustment: Regularly check and adjust concave clearance according to the crop being harvested to optimize threshing performance and minimize grain damage.
- Belt and Chain Tension: Inspect and maintain proper tension on all belts and chains to prevent slippage and ensure efficient power transmission to various components.
- Sieve and Chaffer Cleaning: Clean the sieves and chaffer regularly to remove debris and ensure proper airflow for effective grain separation. Clogged sieves can lead to grain loss.
- Bearing Greasing: Grease all bearings according to the manufacturer's recommended schedule to prevent premature wear and ensure smooth operation.
856 History & Background
The Case IH 856 was released in 1979 as part of the updated '800' series of combines. It offered an upgrade in power and capacity compared to previous models. The 856 was known for its reliable conventional threshing system, making it a popular and dependable choice for farmers during its production run.
Frequently Asked Questions
What in-frame engine overhaul kit is recommended for the Case IH 856?
For a complete engine overhaul, the IK407 - In Frame Engine Overhaul Kit is designed for the Case IH 856.
Which front crankshaft seal fits the Case IH 856?
The recommended front crankshaft seal for your Case IH 856 is the 606780C93 - Seal, Front Crankshaft.
What standard connecting rod bearing is used in the Case IH 856 engine?
The standard connecting rod bearing for the Case IH 856 engine is the 681314C2 - Bearing, Connecting Rod (Std).
What are common parts needed for the 856 engine?
For engine maintenance and repairs on the Case IH 856, commonly needed parts include PR108 - Rings, Piston, 612313C1 - Valve, Exhaust, 343433R2 - Valve, Intake, the 691631C91 - Seal, Rear Crankshaft, the 326562R1 - Bushing, Connecting Rod, and the OGS407 - Gasket Set, Overhaul with Seals.

IK407 - In Frame Engine Overhaul Kit
SKU: IK407
11 in stock

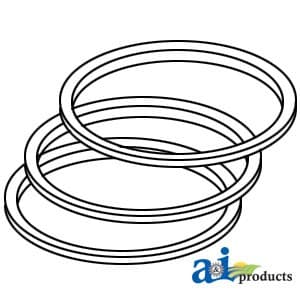

PR108 - Piston Rings
SKU: PR108
65 in stock

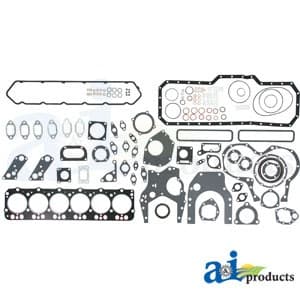

OGS407 - Overhaul with Seals Gasket Set
SKU: OGS407
1 in stock

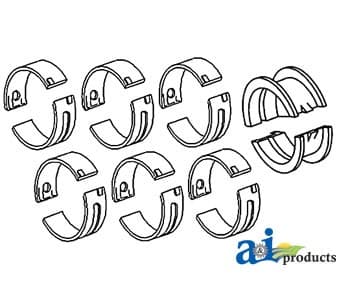

MB361 - set of 7) Main (Std Bearing Set
SKU: MB361
Out of stock

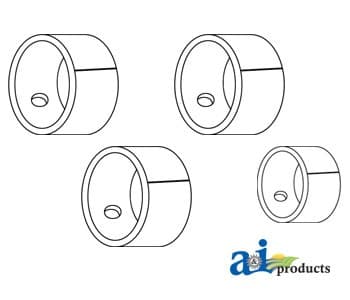

CBS361 - Camshaft (set of 4) Bearing Set
SKU: CBS361
31 in stock

691631C91 - Rear Crankshaft Seal
SKU: 691631C91
191 in stock

687382C2 - Connecting Rod (.020") Bearing
SKU: 687382C2
27 in stock

681316C2 - Connecting Rod (.030") Bearing
SKU: 681316C2
1 in stock

681315C2 - Connecting Rod (.010") Bearing
SKU: 681315C2
32 in stock

681314C2 - Connecting Rod (Std) Bearing
SKU: 681314C2
178 in stock

62265VA - Intake Valve Outer Spring
SKU: 62265VA
21 in stock

62264VA - Intake Valve Inner Spring
SKU: 62264VA
6 in stock

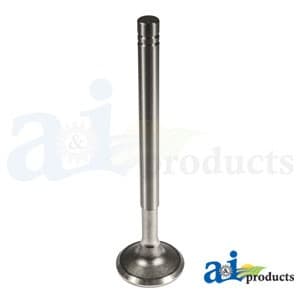

612313C1 - Exhaust Valve
SKU: 612313C1
29 in stock

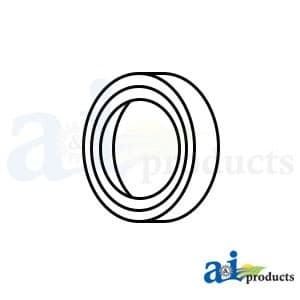

606780C93 - Front Crankshaft Seal
SKU: 606780C93
23 in stock

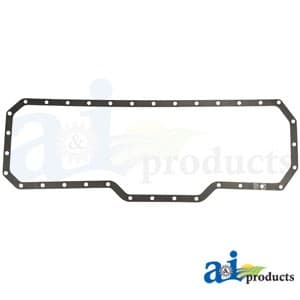

345287R94 - Pan Gasket
SKU: 345287R94
17 in stock

343433R2 - Intake Valve
SKU: 343433R2
15 in stock

326562R1 - Connecting Rod Bushing
SKU: 326562R1
15 in stock

326505R3 - Valve Guide
SKU: 326505R3
1 in stock

160908R1 - Exhaust Valve Outer Spring
SKU: 160908R1
13 in stock

160907R1 - Exhaust Valve Inner Spring
SKU: 160907R1
25 in stock
