Case IH 800 Combine Parts
Replacement parts for the Case IH 800 Combine. Browse our selection of OEM and aftermarket parts — filters, belts, hydraulics, electrical, and more.
The Case IH 800 combine, produced from 1976-1979, was a popular choice for farmers seeking a reliable and straightforward harvesting solution. Typically equipped with engines ranging from 110-130 HP and offering header widths up to 20 feet, this combine provided a solid performance for its time. Known for its conventional separator design, the 800 delivered effective threshing and separation of grain crops, building a reputation for dependable operation.
About the 800
The Case IH 800 combine was introduced in 1976 and remained in production until 1979, filling a need for a mid-sized, dependable machine. It was commonly powered by an International Harvester engine, either the DT-360 or DT-414 diesel, producing around 110 to 130 horsepower depending on the specific engine installed. These engines offered adequate power for the combine's functions. The 800 utilized a conventional cylinder and concave system for threshing, providing efficient separation for a variety of grain crops. The grain tank capacity was approximately 135 bushels, with an unloading auger that could unload grain at a rate of around 40 bushels per minute. Available header widths ranged from 13 to 20 feet, allowing farmers to adapt the combine to their specific field sizes and crop types. Chopper and spreader options were available to manage residue after harvest. The cab offered basic operator comfort, providing protection from the elements. This combine was well-suited for harvesting wheat, soybeans, and corn in moderate-sized fields.
800 Specifications
| Engine | International Harvester DT-360/DT-414 110-130 HP Diesel |
|---|---|
| Separator Type | Conventional - Cylinder with 40-inch width |
| Grain Tank | 135 bushels |
| Unloading Rate | 40 bu/min |
| Header Widths | 13-20 ft |
| Fuel Capacity | 55 gallons |
| Weight | Approximately 12,000 lbs |
| Years Produced | 1976-1979 |
800 Maintenance Tips
- Concave Adjustment: Regularly inspect and adjust the concave clearance to optimize threshing performance and minimize grain damage. Refer to the operator's manual for recommended settings based on the crop being harvested.
- Belt and Chain Tension: Maintain proper tension on all belts and chains to ensure efficient power transmission and prevent premature wear. Check and adjust tension weekly during harvest.
- Sieve and Chaffer Cleaning: Clean the sieves and chaffers regularly to remove debris and maintain optimal airflow for effective grain cleaning. This will prevent grain loss and improve sample quality.
- Bearing Greasing: Grease all bearings according to the manufacturer's recommendations to prevent wear and ensure smooth operation. Pay close attention to bearings in high-stress areas such as the header and threshing cylinder.
800 History & Background
The Case IH 800 combine was introduced in 1976 as a part of the IH's Axial-Flow combine line. It offered a cost-effective and reliable option for farmers not requiring the larger capacity of the Axial-Flow models. While not revolutionary, it represented a solid and dependable machine during its production run.
Frequently Asked Questions
What lube filter is recommended for the Case IH 800 combine?
For routine maintenance on your Case IH 800 combine, the LF548J - Filter, Lube, Cartridge (QTY 1) is a suitable option for effective engine lubrication.
Which slip clutch hub is compatible with the Case IH 800 combine?
The 176387C1 - Hub; Slip Clutch is an appropriate replacement part for the slip clutch assembly on your Case IH 800 combine.
What idler pulley is suitable for the Case IH 800 combine?
You can use the 76288 - Pulley, Idler as a direct replacement for various idler applications on the Case IH 800 combine.
What are common replacement parts for the Case IH 800 combine?
Regularly replaced wear parts for the Case IH 800 combine include the 176279C91 - Chain (Agriculture), 176283C91 - Sprocket, Lower Idler, and the 1963810C2 - Brake Disc, Heavy Duty. Other frequently needed items are the FF109J - Filter, Fuel, Cartridge (QTY 1), 663887R91 - Pulley Assy, Unloader Belt Tightener/ Fan Jackshaft Drive Idler, and 199097C3 - Ear Deflector.

663887R91 - Unloader Belt Tightener/ Fan Jackshaft Drive Idler Pulley Assy
SKU: 663887R91
17 in stock

199097C3 - Ear Deflector
SKU: 199097C3
186 in stock

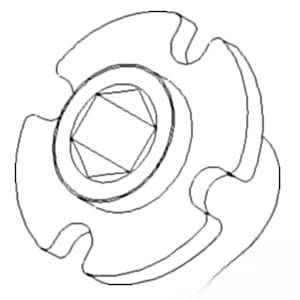

176499C1 - Slip Clutch Hub
SKU: 176499C1
17 in stock

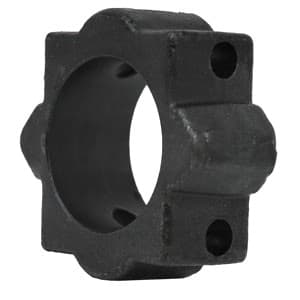

176387C1 - Slip Clutch Hub
SKU: 176387C1
179 in stock

176287C2 - Support Assy. (RH)
SKU: 176287C2
19 in stock

176286C2 - Support Assy.
SKU: 176286C2
32 in stock

176283C91 - Lower Idler Sprocket
SKU: 176283C91
1 in stock

176279C91 - Chain (Agriculture)
SKU: 176279C91
498 in stock

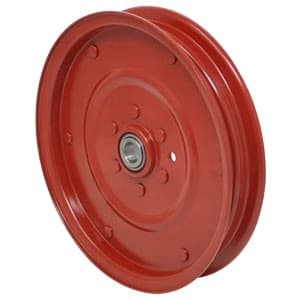

76288 - Idler Pulley
SKU: 76288
40 in stock

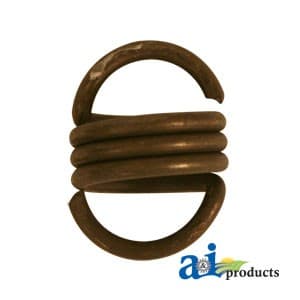

619731C1 - Brake Actuator (2/pk) Spring
SKU: 619731C1
441 in stock

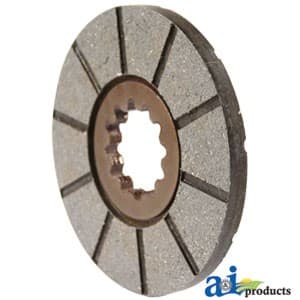

1963810C2 - Heavy Duty Brake Disc
SKU: 1963810C2
547 in stock

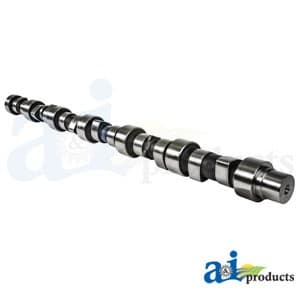

J923478 - Camshaft
SKU: J923478
3 in stock

1118991 - Voltage Regulator (12 Volt)
SKU: 1118991
21 in stock

1115510 - SOLENOID SWITCH
SKU: 1115510
404 in stock

LF793J - Cartridge (QTY 1) Lube Filter
SKU: LF793J
Out of stock

LF793 - Cartridge (QTY 6) Lube Filter
SKU: LF793
6 in stock

LF548J - Cartridge (QTY 1) Lube Filter
SKU: LF548J
Out of stock

FF109J - Cartridge (QTY 1) Fuel Filter
SKU: FF109J
Out of stock

FF109 - Cartridge (QTY 12) Fuel Filter
SKU: FF109
25 in stock
