Case IH 715 Combine Parts

Jump to Parts

The Case IH 715 combine, produced from 1977 to 1979, was a popular choice for farmers looking for a reliable and robust machine. Powered by a 105 HP engine, this combine offered header widths up to 13 feet. Its conventional separator system and straightforward design made it a dependable workhorse for harvesting a variety of grains.

The Case IH 715 combine was introduced in 1977 and remained in production until 1979. It features an International Harvester D358 5.9L 105 HP diesel engine, known for its durability and fuel efficiency. The 715 utilizes a conventional threshing system with a 39-inch wide cylinder. Its grain tank capacity is approximately 85 bushels, and the unloading auger can empty the tank at a rate of around 35 bushels per minute. Available header widths ranged up to 13 feet, accommodating various field sizes. The 715 was equipped with a standard straw chopper to manage residue. The cab offered basic controls and visibility, prioritizing functionality. The Case IH 715 was well-suited for harvesting wheat, soybeans, and other small grains where simplicity and reliability were valued.

Specifications

Engine	International Harvester D358 105 HP 5.9L Diesel
Separator Type	Conventional - 39" Cylinder width
Grain Tank	85 bushels
Unloading Rate	35 bu/min
Header Widths	Up to 13 ft
Fuel Capacity	Not available
Weight	Not available
Years Produced	1977-1979

Maintenance Tips

Concave Adjustment: Regularly check and adjust the concave clearance to ensure proper threshing without excessive grain damage. Refer to the operator's manual for recommended settings for different crops.

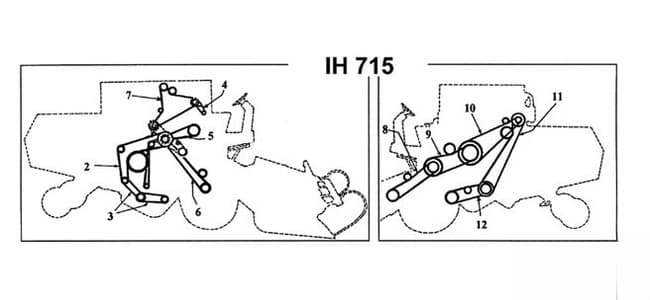

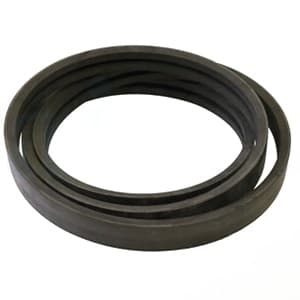

Belt and Chain Tension: Inspect all belts and chains for wear and proper tension. Loose or worn belts and chains can lead to slippage and component failure.
Sieve and Chaffer Cleaning: Periodically clean the sieves and chaffer to remove debris and ensure proper air separation, maximizing grain cleanliness and minimizing losses.

History & Background

The Case IH 715 was introduced in 1977 as a mid-sized combine option. It represented a continuation of International Harvester's conventional combine design philosophy, offering a reliable and relatively simple harvesting solution. The 715 played a role in providing farmers with a durable and affordable combine option during its production years.

Frequently Asked Questions

What engine is in the Case Ih 715?

The Case IH 715 is equipped with an International Harvester D358 5.9L diesel engine, producing 105 horsepower.

What is the grain tank capacity on a 715?

The grain tank capacity on the Case IH 715 is approximately 85 bushels, with an unloading rate of around 35 bushels per minute.

What type of separator does the 715 have?

The Case IH 715 utilizes a conventional threshing system with a 39-inch wide cylinder. This provides a traditional method for separating grain from the plant material.

What are common parts needed for the 715?

Common wear parts for the Case IH 715 include concaves, rasp bars, belts, chains, bearings, auger fingers, and sickle sections. Regular replacement of these parts helps maintain optimal performance.
