Ariens Gravely 939300-ST520 Snow Blower Thrower Parts

Browse Ariens Gravely 939300-ST520 Snow Blower Thrower replacement parts. Everything from routine maintenance items to hard-to-find components.

The Ariens Gravely 939300 ST520 is a robust two-stage snow blower designed for both residential and commercial use. While specific production years may vary, this model offers a reliable gas engine and a 20-inch clearing width, making it a popular choice for tackling moderate to heavy snowfall. Known for its durability and ease of use, the ST520 provides efficient snow removal for driveways and walkways.

About the 939300 ST520

The Ariens Gravely 939300 ST520 snow blower is a dependable machine built for handling significant snow accumulations. Though specific production years for the 939300 model may vary, similar models in the Ariens Gravely lineup were produced throughout the late 1990s and early 2000s. Powering this machine is typically a Tecumseh engine, offering around 5 HP (specific HP depends on the exact year and variant). Some models might feature an optional electric start for easier starting in cold weather. The ST520 is a two-stage snow blower, using a serrated auger to break up snow and then an impeller to throw it away from the clearing path. It boasts a 20-inch clearing width and an intake height of approximately 16 inches, allowing it to handle substantial snow depths. The throwing distance can reach up to 30 feet, depending on snow conditions. The machine uses a wheel drive system, with multiple forward and reverse speeds to adjust to different snow conditions and operator preferences. Chute rotation is manual. While features like headlights and heated grips aren't standard on all versions of the ST520, their robust construction makes them suited for handling packed and icy snow on driveways and walkways.

939300 ST520 Specifications

EngineTecumseh 5 HP (approx) Electric Start Optional
Stage TypeTwo-Stage
Clearing Width20 inches
Intake Height16 inches
Throwing DistanceUp to 30 ft
Drive SystemWheel - 4 Forward/2 Reverse
Fuel Tank1.5 Gallons (approx)
Weight170 Lbs (approx)
Years ProducedLate 1990s - Early 2000s (approx)

939300 ST520 Maintenance Tips

  • Inspect Auger and Impeller: Regularly check the auger blades and impeller for damage or wear. Replace damaged components promptly to maintain optimal performance.
  • Check and Replace Shear Pins: Shear pins protect the auger gearbox. Inspect them before each use and replace any that are broken or damaged. Use only the correct replacement shear pins.
  • Oil Changes and Fuel Stabilizer: Change the engine oil annually, following the manufacturer's recommendations. Add fuel stabilizer to the fuel tank before storing the snow blower for the off-season to prevent fuel degradation.
  • Skid Shoe Adjustment: Adjust the skid shoes to the appropriate height based on the surface you are clearing. Raise the skid shoes for gravel or uneven surfaces to prevent damage to the snow blower and the surface.

939300 ST520 History & Background

The Ariens Gravely ST520 model represents a line of dependable two-stage snow blowers designed for residential use. While specific launch dates are difficult to pinpoint without extensive research, it falls into the Ariens/Gravely tradition of building robust and reliable snow removal equipment. It's an example of a machine built to last and perform well for many seasons.

Frequently Asked Questions

Which auger drive belt fits the Ariens Gravely 939300 ST520?

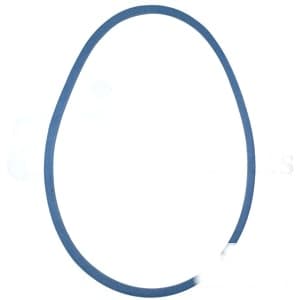

The A33K - Aramid Blue V-Belt (1/2" X 35") is a suitable replacement for the auger drive belt on the Ariens Gravely 939300 ST520, which replaces OEM part number 07200108.

What drive belt is recommended for the 939300 ST520?

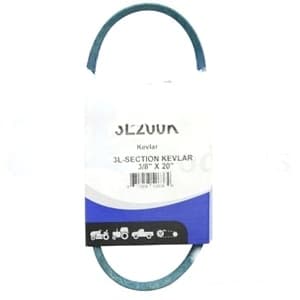

For the Ariens Gravely 939300 ST520, the 3L200K - Aramid Blue V-Belt (3/8" X 20") is an ideal replacement drive belt, which is equivalent to OEM part number 07200109.

Where can I find a replacement drive belt for the Ariens Gravely 939300 ST520?

The exact drive belt for the Ariens Gravely 939300 ST520 is the 07200109 - Belt, Drive.

What are common replacement parts for the 939300 ST520?

Common replacement parts for the Ariens Gravely 939300 ST520 include the 07200109 - Belt, Drive (or equivalent 3L200K - Aramid Blue V-Belt (3/8" X 20")) and the 07200108 - Belt, Auger Drive (or equivalent A33K - Aramid Blue V-Belt (1/2" X 35")).

Showing 1-4 of 4 products
