Technical Details
- •Operating Temperature: -40 ~ 140 Fahrenheit /-40 ~ 60 Celsius
Specifications
- Body:
- Rectangle
- Draw:
- 3.33 Amps @ 12 Volts & 1.66 Amps @ 24 Volts (Watts / Volts = Amps)
- Lens:
- Polycarbonate
- Volt:
- 10-30 Volt DC
- Diode:
- (8) 5 Watt Cree Diodes
- Includes:
- Built in premium EMC noise suppression filter
- Replaces:
- AFH209736, 109696, 109112
- Dimensions:
- Width 6.18" (15.7cm) X Height 3.76" (9.55cm) X Depth 2.78" (7.04cm)
- Lumens Raw:
- 4000
- Body Material:
- Die Cast Aluminum
- Light Pattern:
- Flood
- Lumens Effective:
- 2800
- Color Temperature:
- 6000K
About This Product

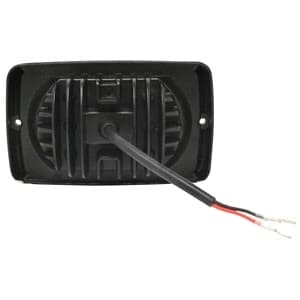

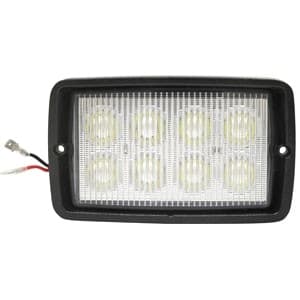

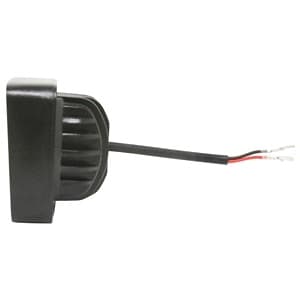

The WL9696 Worklamp, LED, Flood is a premium replacement part engineered to fit John Deere and MacDon equipment. Part number WL9696 is built to OEM specifications for reliable, long-lasting performance in demanding agricultural and industrial applications. Key specifications for WL9696: Body: Rectangle; Draw: 3.33 Amps @ 12 Volts & 1.66 Amps @ 24 Volts (Watts / Volts = Amps); Lens: Polycarbonate; Volt: 10-30 Volt DC; Diode: (8) 5 Watt Cree Diodes; Includes: Built in premium EMC noise suppression filter; Replaces: AFH209736, 109696, 109112; Dimensions: Width 6.18" (15.7cm) X Height 3.76" (9.55cm) X Depth 2.78" (7.04cm). These specifications ensure proper fitment and function on compatible equipment. WL9696 is a direct-fit replacement designed for the following equipment: John Deere W110, W150, W155; MacDon M100, M105, M150, M155, M155E4, M200, and additional models. Part number WL9696 replaces OEM part numbers AFH209736 (JOHN DEERE), 109112 (MACDON), 109696 (MACDON). Confirm your part number before ordering to ensure correct replacement. Order WL9696 from Madison Tractor for fast shipping, knowledgeable parts support, and our quality guarantee. We stock thousands of replacement parts for tractors, mowers, and agricultural equipment — if you have questions about WL9696 or need help confirming fitment, our parts specialists are ready to help.
Cross References
AFH209736
JOHN DEERE
HR209736
A & I MEGA-CROSS
TL8350
A & I MEGA-CROSS
TL8350
DB ELECTRICAL
109112
MACDON
109696
MACDON
A-2652
A & I MEGA-CROSS
Fits the following makes and models:
