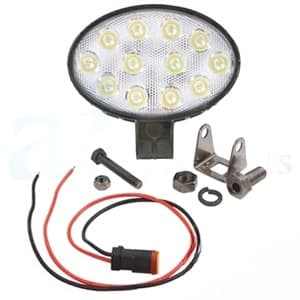

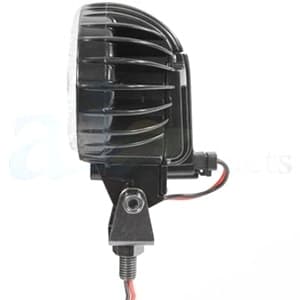

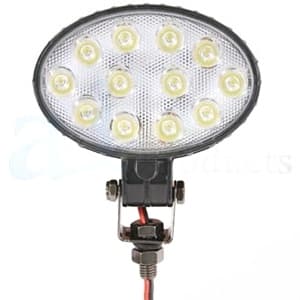

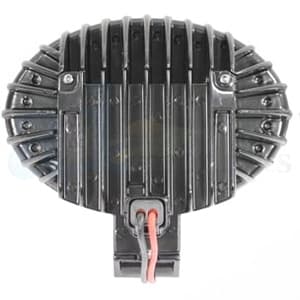

WL957 - Oval Trapezoid LED Work Lamp








Technical Details
- •Operating Temperature: -22 ~ 122 Fahrenheit /-30 ~50 Celsius
Specifications
- Body:
- Oval
- Draw:
- 3 Amps @ 12 Volts & 1.5 Amp @ 24 Volts (Watts / Volts = Amps)
- Lens:
- Acrylic
- Volt:
- 10-30 Volt DC
- Diode:
- (12) 3 Watt Cree Diodes
- Mounting:
- Hollow mounting stud to run power wires through
- Dimensions:
- Width 5.50" (140mm) X Height 3.75" (95mm) X Depth 2.75" (70mm)
- Lumens Raw:
- 2,880
- Body Material:
- Die Cast Aluminum
- Light Pattern:
- Trapezoid
- Lumens Effective:
- 2,300
- Color Temperature:
- 6000K
About This Product
The WL957 Work Lamp, LED, Trapezoid, Oval is a premium replacement part engineered to fit Allis-Chalmers and Bobcat and other major brand equipment. Part number WL957 is built to OEM specifications for reliable, long-lasting performance in demanding agricultural and industrial applications. Key specifications for WL957: Body: Oval; Draw: 3 Amps @ 12 Volts & 1.5 Amp @ 24 Volts (Watts / Volts = Amps); Lens: Acrylic; Volt: 10-30 Volt DC; Diode: (12) 3 Watt Cree Diodes; Mounting: Hollow mounting stud to run power wires through; Dimensions: Width 5.50" (140mm) X Height 3.75" (95mm) X Depth 2.75" (70mm); Lumens Raw: 2,880. These specifications ensure proper fitment and function on compatible equipment. WL957 is a direct-fit replacement designed for the following equipment: Challenger VARIOUS MODELS; David Brown VARIOUS MODELS; Deutz ALL MODELS; Dresser VARIOUS MODELS; Fiat ALL MODELS. Additional applications available — contact us to confirm fitment. Part number WL957 replaces OEM part numbers RE321842 (JOHN DEERE), RE311960 (JOHN DEERE), RE564386 (JOHN DEERE), RE574753 (JOHN DEERE). Confirm your part number before ordering to ensure correct replacement. Order WL957 from Madison Tractor for fast shipping, knowledgeable parts support, and our quality guarantee. We stock thousands of replacement parts for tractors, mowers, and agricultural equipment — if you have questions about WL957 or need help confirming fitment, our parts specialists are ready to help.
Cross References
A-RE321842
JOHN DEERE
NOS-JDRE321842
A & I MEGA-CROSS
RE311960
JOHN DEERE
A-RE321842
JOHN DEERE
RE564386
JOHN DEERE
RE574753
JOHN DEERE
Fits the following makes and models:
