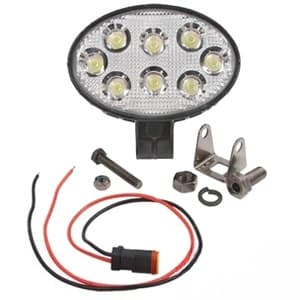

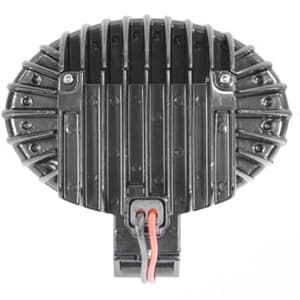

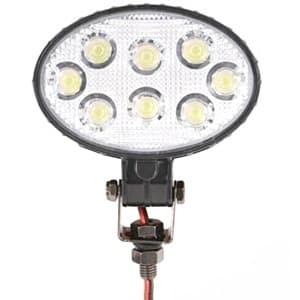

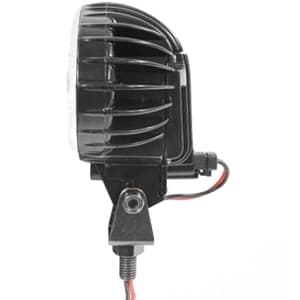

WL956 - Flood LED; Oval Work Lamp








Technical Details
- •Operating Temperature: -22 ~ 122 Fahrenheit /-30 ~50 Celsius
Specifications
- Body:
- Oval
- Draw:
- 2 Amps @ 12 Volts & 1 Amp @ 24 Volts (Watts / Volts = Amps)
- Lens:
- Acrylic
- Volt:
- 10-30 Volt DC
- Diode:
- (8) 3 Watt Cree Diodes
- Mounting:
- Hollow mounting stud to run power wires through
- Dimensions:
- Width 5.50" (140mm) X Height 3.75" (95mm) X Depth 2.75" (70mm)
- Lumens Raw:
- 1,920
- Body Material:
- Die Cast Aluminum
- Light Pattern:
- Flood
- Lumens Effective:
- 1,500
- Color Temperature:
- 6000K
About This Product
The WL956 Work Lamp, LED; Oval, Flood is a premium replacement part engineered to fit Allis-Chalmers and Bobcat and other major brand equipment. Part number WL956 is built to OEM specifications for reliable, long-lasting performance in demanding agricultural and industrial applications. Key specifications for WL956: Body: Oval; Draw: 2 Amps @ 12 Volts & 1 Amp @ 24 Volts (Watts / Volts = Amps); Lens: Acrylic; Volt: 10-30 Volt DC; Diode: (8) 3 Watt Cree Diodes; Mounting: Hollow mounting stud to run power wires through; Dimensions: Width 5.50" (140mm) X Height 3.75" (95mm) X Depth 2.75" (70mm); Lumens Raw: 1,920. These specifications ensure proper fitment and function on compatible equipment. WL956 is a direct-fit replacement designed for the following equipment: Challenger VARIOUS MODELS; David Brown VARIOUS MODELS; Deutz ALL MODELS; Dresser VARIOUS MODELS; Fiat ALL MODELS. Additional applications available — contact us to confirm fitment. Part number WL956 replaces OEM part numbers RE294956 (JOHN DEERE), RE321841 (JOHN DEERE), RE234568 (JOHN DEERE), RE276487 (JOHN DEERE), RE311958 (JOHN DEERE), RE319341 (JOHN DEERE), plus additional OEM cross-references. Confirm your part number before ordering to ensure correct replacement. Order WL956 from Madison Tractor for fast shipping, knowledgeable parts support, and our quality guarantee. We stock thousands of replacement parts for tractors, mowers, and agricultural equipment — if you have questions about WL956 or need help confirming fitment, our parts specialists are ready to help.
Cross References
RE294956
JOHN DEERE
A-RE321841
JOHN DEERE
NOS-JDRE276487
A & I MEGA-CROSS
NOS-JDRE321841
A & I MEGA-CROSS
NOS-JDRE564385
A & I MEGA-CROSS
NOS-JDRE574752
A & I MEGA-CROSS
RE234568
JOHN DEERE
RE276487
JOHN DEERE
RE311958
JOHN DEERE
RE319341
JOHN DEERE
A-RE321841
JOHN DEERE
RE564385
JOHN DEERE
RE574752
JOHN DEERE
WN-LED-630F
A & I MEGA-CROSS
Fits the following makes and models:
