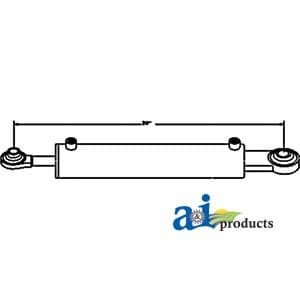

TLH005 - Hydraulic Top Link Cylinder (Cat II) (3" Bore)
$305.39
In Stock (52 available)
Technical Details
- •All ports .563"-18 orb w/ two adapters .563"-18 ORBM X .250 NPTM 90� swivel.
Specifications
- P S I:
- 1450.377
- Stroke:
- 8"
- Replaces:
- Gannon 13-827
- Barrel Length:
- 12.438"
- Working Pressure:
- 1450 lbs.
- Compressed Length:
- 26"
- Rod End Ball Width:
- 1.750"
- Base End Ball Inside Dia:
- 1"
- Base To Ball Center Lngth:
- 5.500"
- Rod End Ball Inside Diame:
- 1"
Cross References
TLH05
MISCELLANEOUS
HTL3103
A & I MEGA-CROSS
13-827
MISCELLANEOUS
