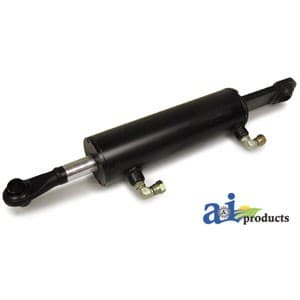

TLH005 - Hydraulic Top Link Cylinder (Cat II) (3" Bore)








Technical Details
- •All ports .563"-18 orb w/ two adapters .563"-18 ORBM X .250 NPTM 90� swivel.
Specifications
- P S I:
- 1450.377
- Stroke:
- 8"
- Replaces:
- Gannon 13-827
- Barrel Length:
- 12.438"
- Working Pressure:
- 1450 lbs.
- Compressed Length:
- 26"
- Rod End Ball Width:
- 1.750"
- Base End Ball Inside Dia:
- 1"
- Base To Ball Center Lngth:
- 5.500"
- Rod End Ball Inside Diame:
- 1"
About This Product
The TLH005 Hydraulic Top Link Cylinder (Cat II) (3" Bore) is a premium replacement part engineered to fit Ford / New Holland and John Deere and other major brand equipment. Part number TLH005 is built to OEM specifications for reliable, long-lasting performance in demanding agricultural and industrial applications. Key specifications for TLH005: P S I: 1450.377; Stroke: 8"; Replaces: Gannon 13-827; Barrel Length: 12.438"; Working Pressure: 1450 lbs.; Compressed Length: 26"; Rod End Ball Width: 1.750"; Base End Ball Inside Dia: 1". These specifications ensure proper fitment and function on compatible equipment. TLH005 is a direct-fit replacement designed for the following equipment: Ford / New Holland Tractor; John Deere Tractor; Kubota Tractor; Massey Ferguson Tractor. Order TLH005 from Madison Tractor for fast shipping, knowledgeable parts support, and our quality guarantee. We stock thousands of replacement parts for tractors, mowers, and agricultural equipment — if you have questions about TLH005 or need help confirming fitment, our parts specialists are ready to help.
Cross References
TLH05
MISCELLANEOUS
HTL3103
A & I MEGA-CROSS
13-827
MISCELLANEOUS
Fits the following makes and models:
