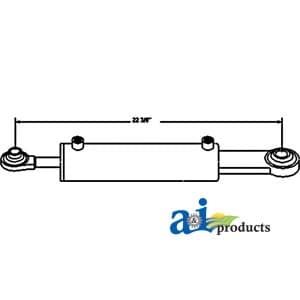

Hydraulic Top Link Cylinder (Cat I Rod/Cat II Base) (3" Bore) SKU: TLH004
Order by 2:00 pm EST and we do our best to ship it the same day.
- 90-day returns
- Secure checkout
- Family-owned since 2009
Not 100% sure this is the right part?
Call (828) 649-7190 — we answer and help with fitmentMonday to Friday, 8 am to 4 pm EST
Technical Details & Specs
- •All ports .563"-18 ORB w/ two adapters .563" -18 ORBM X .250" NPTM 90� swivel.
- P S I:
- 1450.377
- Stroke:
- 8"
- Replaces:
- Gannon 13-507
- Barrel Length:
- 12.438"
- Working Pressure:
- 1450 lbs
- Compressed Length:
- 22"
- Rod End Ball Width:
- 1.750"
- Base End Ball Width:
- 1.750"
- Base End Ball Inside Dia:
- 1"
- Base To Ball Center Lngth:
- 5.500"
- Rod End Ball Inside Diame:
- .750"
Fits These Models
Cross References / Replaces
TLH04
MISCELLANEOUS
HTL3105
A & I MEGA-CROSS
13-507
MISCELLANEOUS
About This Part
The TLH004 Hydraulic Top Link Cylinder (Cat I Rod/Cat II Base) (3" Bore) is a premium replacement part engineered to fit Ford / New Holland and John Deere and other major brand equipment. Part number TLH004 is built to OEM specifications for reliable, long-lasting performance in demanding agricultural and industrial applications. Key specifications for TLH004: P S I: 1450.377; Stroke: 8"; Replaces: Gannon 13-507; Barrel Length: 12.438"; Working Pressure: 1450 lbs; Compressed Length: 22"; Rod End Ball Width: 1.750"; Base End Ball Width: 1.750". These specifications ensure proper fitment and function on compatible equipment. TLH004 is a direct-fit replacement designed for the following equipment: Ford / New Holland Tractor; John Deere Tractor; Kubota Tractor; Massey Ferguson Tractor. Order TLH004 from Madison Tractor for fast shipping, knowledgeable parts support, and our quality guarantee. We stock thousands of replacement parts for tractors, mowers, and agricultural equipment — if you have questions about TLH004 or need help confirming fitment, our parts specialists are ready to help.
