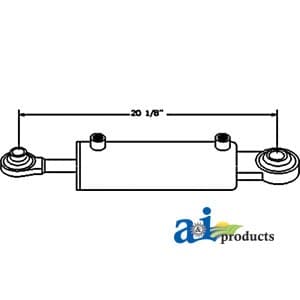

TLH003 - Hydraulic Top Link Cylinder (Cat I Rod/Cat II Base) (3" Bore)

Hydraulic Top Link Cylinder (Cat I Rod/Cat II Base) (3" Bore) SKU: TLH003

$401.1428 in stock

Order by 2:00 pm EST and we do our best to ship it the same day.

Not 100% sure this is the right part?

Call (828) 649-7190 — we answer and help with fitment

Monday to Friday, 8 am to 4 pm EST

Technical Details & Specs

  • •All ports .563"-18 ORB w/ two adapters .563" -18 ORBM X .250" NPTM 90� swivel.
P S I:
1450.377
Stroke:
8"
Replaces:
Gannon 13-544
Barrel Length:
12.438"
Rope Diameter:
1.100"
Working Pressure:
1450 lbs
Compressed Length:
20"
Rod End Ball Width:
1.750"
Base End Ball Width:
1.750"
Base End Ball Inside Dia:
1"
Base To Ball Center Lngth:
3.500"
Rod End Ball Inside Diame:
.750"

Cross References / Replaces

TLH03

MISCELLANEOUS

HTL3101

A & I MEGA-CROSS

13-544

MISCELLANEOUS

About This Part

The TLH003 Hydraulic Top Link Cylinder (Cat I Rod/Cat II Base) (3" Bore) is a premium replacement part engineered to fit Ford / New Holland and John Deere and other major brand equipment. Part number TLH003 is built to OEM specifications for reliable, long-lasting performance in demanding agricultural and industrial applications. Key specifications for TLH003: P S I: 1450.377; Stroke: 8"; Replaces: Gannon 13-544; Barrel Length: 12.438"; Rope Diameter: 1.100"; Working Pressure: 1450 lbs; Compressed Length: 20"; Rod End Ball Width: 1.750". These specifications ensure proper fitment and function on compatible equipment. TLH003 is a direct-fit replacement designed for the following equipment: Ford / New Holland Tractor; John Deere Tractor; Kubota Tractor; Massey Ferguson Tractor. Order TLH003 from Madison Tractor for fast shipping, knowledgeable parts support, and our quality guarantee. We stock thousands of replacement parts for tractors, mowers, and agricultural equipment — if you have questions about TLH003 or need help confirming fitment, our parts specialists are ready to help.
