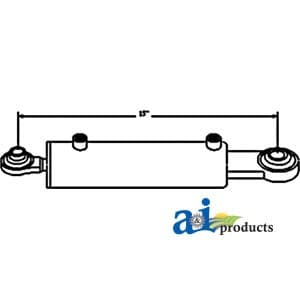

TLH002 - Hydraulic Top Link Cylinder (Cat I) (2" Bore)








Technical Details
- •All ports .563"-18 ORB w/ two adapters .563" -18 ORBM X .250" NPTM 90� swivel.
Specifications
- P S I:
- 1450.377
- Stroke:
- 5"
- Replaces:
- Gannon 13-762
- Barrel Length:
- 9"
- Base End Width:
- 1.563"
- Working Pressure:
- 1450 lbs
- Compressed Length:
- 15"
- Rod End Ball Width:
- 1.750"
- Base End Ball Inside Dia:
- .750"
- Base To Ball Center Lngth:
- 3.813"
- Rod End Ball Inside Diame:
- .750"
About This Product
The TLH002 Hydraulic Top Link Cylinder (Cat I) (2" Bore) is a premium replacement part engineered to fit Ford / New Holland and John Deere and other major brand equipment. Part number TLH002 is built to OEM specifications for reliable, long-lasting performance in demanding agricultural and industrial applications. Key specifications for TLH002: P S I: 1450.377; Stroke: 5"; Replaces: Gannon 13-762; Barrel Length: 9"; Base End Width: 1.563"; Working Pressure: 1450 lbs; Compressed Length: 15"; Rod End Ball Width: 1.750". These specifications ensure proper fitment and function on compatible equipment. TLH002 is a direct-fit replacement designed for the following equipment: Ford / New Holland Tractor; John Deere Tractor; Kubota Tractor; Massey Ferguson Tractor. Order TLH002 from Madison Tractor for fast shipping, knowledgeable parts support, and our quality guarantee. We stock thousands of replacement parts for tractors, mowers, and agricultural equipment — if you have questions about TLH002 or need help confirming fitment, our parts specialists are ready to help.
Cross References
TLH02
MISCELLANEOUS
HTL2103
A & I MEGA-CROSS
13-762
MISCELLANEOUS
Fits the following makes and models:
