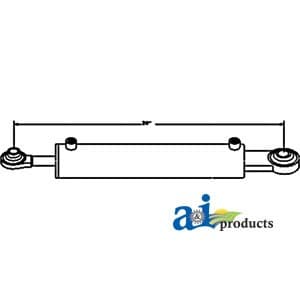

TLH001 - Hydraulic Top Link Cylinder (Cat I) (2" Bore)








Technical Details
- •All ports .563"-18 ORB
Specifications
- P S I:
- 1450.377
- Stroke:
- 8"
- Replaces:
- Gannon 13-650
- Barrel Length:
- 12.438"
- Working Pressure:
- 1450 lbs
- Compressed Length:
- 20"
- Rod End Ball Width:
- 1.750"
- Base End Ball Width:
- 1.375"
- Base End Ball Inside Dia:
- .750"
- Base To Ball Center Lngth:
- 3.500"
- Rod End Ball Inside Diame:
- .750"
About This Product
The TLH001 Hydraulic Top Link Cylinder (Cat I) (2" Bore) is a premium replacement part engineered to fit Ford / New Holland and John Deere and other major brand equipment. Part number TLH001 is built to OEM specifications for reliable, long-lasting performance in demanding agricultural and industrial applications. Key specifications for TLH001: P S I: 1450.377; Stroke: 8"; Replaces: Gannon 13-650; Barrel Length: 12.438"; Working Pressure: 1450 lbs; Compressed Length: 20"; Rod End Ball Width: 1.750"; Base End Ball Width: 1.375". These specifications ensure proper fitment and function on compatible equipment. TLH001 is a direct-fit replacement designed for the following equipment: Ford / New Holland Tractor; John Deere Tractor; Kubota Tractor; Massey Ferguson Tractor. Order TLH001 from Madison Tractor for fast shipping, knowledgeable parts support, and our quality guarantee. We stock thousands of replacement parts for tractors, mowers, and agricultural equipment — if you have questions about TLH001 or need help confirming fitment, our parts specialists are ready to help.
Cross References
TLH01
MISCELLANEOUS
HTL2102
A & I MEGA-CROSS
13-650
MISCELLANEOUS
Fits the following makes and models:
