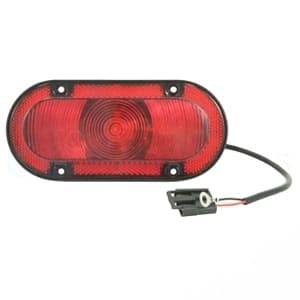

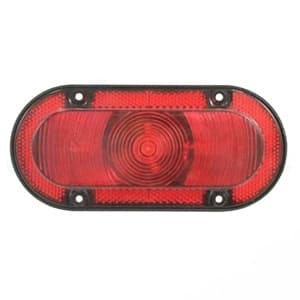

72160473LED - Red LED Tail / Warning Light








Technical Details

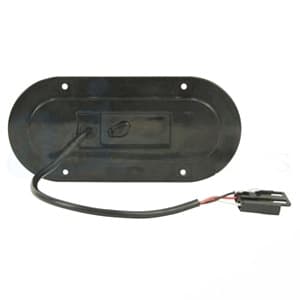

- •This lamp requires the black ground wire eyelet to be grounded properly for light to function. It may be connected to the existing light mounting screws with an internal tooth lock washer & nut or to the fender panel with a self-tapping screw. (hardware not included with light)
Specifications
- Mount:
- 4 mounting holes 4" apart side to side & 3" apart top to bottom
- Replaces:
- 30-3153347, 72160473, Grote 455
- Dim A (1):
- Red Polycarbonate Lens
- Dim B (2):
- 3 - 3 Watt LED Lights
- Dim C (3):
- Black wire ground, red wire high beam, white wire low beam
- Dim D (4):
- Can wire for Hi / Low (Brake Light) function
- Volt/ Amperage:
- For 10 - 30 Volt systems
About This Product
The 72160473LED Tail / Warning Light, LED, Red is a premium replacement part engineered to fit Allis-Chalmers and White/ Oliver/ Mpl Moline equipment. Part number 72160473LED is built to OEM specifications for reliable, long-lasting performance in demanding agricultural and industrial applications. Key specifications for 72160473LED: Mount: 4 mounting holes 4" apart side to side & 3" apart top to bottom; Replaces: 30-3153347, 72160473, Grote 455; Dim A (1): Red Polycarbonate Lens; Dim B (2): 3 - 3 Watt LED Lights; Dim C (3): Black wire ground, red wire high beam, white wire low beam; Dim D (4): Can wire for Hi / Low (Brake Light) function; Volt/ Amperage: For 10 - 30 Volt systems. These specifications ensure proper fitment and function on compatible equipment. 72160473LED is a direct-fit replacement designed for the following equipment: Allis-Chalmers 9130, 9150, 9170, 9190; White/ Oliver/ Mpl Moline 100, 120, 140, 160, 185, 2-105, and additional models. Order 72160473LED from Madison Tractor for fast shipping, knowledgeable parts support, and our quality guarantee. We stock thousands of replacement parts for tractors, mowers, and agricultural equipment — if you have questions about 72160473LED or need help confirming fitment, our parts specialists are ready to help.
Cross References
SW14561
A & I MEGA-CROSS
WN-AR78825
A & I MEGA-CROSS
Fits the following makes and models:
