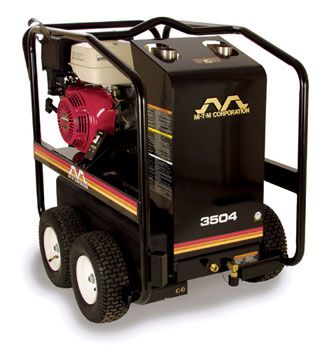

HSP-3504-3MGH - Direct Driven Hot Pressure Washer, Gas OHV Honda

Availability: Out of stock

Is this the correct part for your application? Check the Part Diagrams.

< hr>
PSI - 3500
GPM - 3.3
HP - 13.0
< hr>
The HSP Series is designed with the Mi-T-M patented electro magnetic firing system, which means there is no need for a 12V battery, generator, blower motor and alternator; therefore, making these pressure washers especially maintenance friendly.

- Performance-proven OHV engine with low oil protection and recoil start

- Direct drive triplex ceramic piston pump with forged brass manifold

- Thermal relief valve

- Stainless-steel and brass unloader valve

- Low pressure detergent injection

- Complete system diagnostic board

- Pressure and high limit safety controls

- No. 1 or No. 2 diesel or kerosene fired burner

- Polyethylene burner fuel tank

- Temperature rise 150 degrees F/66 degrees C above ambient, maximum outlet temperature 200 degrees F

- Wand holder

- Powder coated steel hose reel bracket

- Locking tire brake

- Solid steel threaded axles

- Pneumatic tires with tubes (4)

- 50 foot x 3/8 inch steel wire braided pressure hose with screw connects, swivel, and bend restrictors

- Professional grade insulated trigger gun with safety lock-off

- Adjustable pressure insulated dual lance with 15 degree fixed and detergent nozzle

One (1) year limited parts and labor warranty

Two (2) year limited warranty on Honda engine

Three (3) year limited warranty on Subaru engine

Three (3) year limited warranty on coil

Seven (7) year limited warranty on pump

- High quality fuel filter/water separator ensures clean fuel supply

- Energy efficient top-fired powder coated heat exchanger designed for convenient troubleshooting and easy maintenance

- Reinforced powder coated steel tube frame with center balanced lifting hook

- Patented electro magnetic firing (EMF) system

- Easy coil drain helps prevent freezing in cold weather


Rain cap - dual exhaust (20-9050) - Protects boiler from moisture build-up when unit is left outside

Electric start (HX-0098 for 389cc* Honda) - For easy starting

Puncture-proof tires (TX-1004-W) - Tires are flat-free, maintenance-free, 10-inch, white hub, four tires

Puncture-proof tires (TX-1304-W) - Tires are flat-free, maintenance-free, 13-inch, white hub, four tires

*Displacement (cc) as rated by engine manufacturer.
Additional Information
shipping_weight 551.0000
