Details

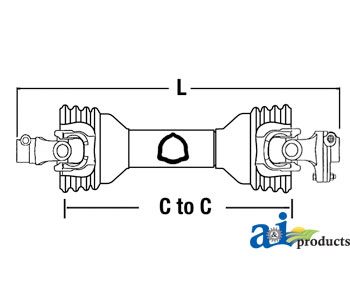

New Complete Driveline with Shear Bolt Clutch, size 8. 100 Series, category 6 HD (95 hp). Minimum
C-to-C length: 45" (1160) mm; Maximum C-to-C length: 74" (1880 mm), Total Collapsed C-to-C length:
55" (1415 mm). Tractor end: 1-3/8" 6 Spline quick disconnect. Implement end: 1-3/4" 20 Spline with
shear bolt clamp. Fits Bondioli & Pavesi 100 Series.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size
8
Total Collapsed Length
1420 mm/ 55"
Tractor
1 3/8"-6 QD
Implement
1 3/4"- 20 w/ S.B. Clamp
C to C Min
1150 mm/ 45"
C to C Max
1880 mm/ 74"
Series
100
Category
6 (95HP)
Cross References:
Replaces:
N16234
MISCELLANEOUS
Crossed From:
06-0001
A & I MEGCROSS
Fits the following makes and models:
Bondioli & Pavesi 100 Series: Size 8
