Details

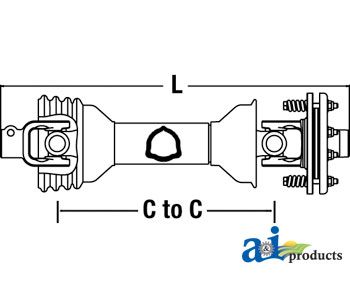

New 100 Series Driveline with friction clutch, size 5. Driveline minimum C-to-C length: 35" (885
mm), Maximum C-to-C length: 52" (1310 mm), Total collapsed length: 45" (1140 mm). Tractor end is a
1-3/8" 6 spline yoke. Implement end is 1-3/8" round bore FF1 friction clutch with a 5" pin hole.
Driveline is rated as a category 4 (47 hp). Fits Bondioli & Pavesi 100 Series.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size
5
Total Collapsed Length
1140 mm/ 45"
Tractor
1 3/8" -6
Implement
1 3/8" R.B. w/ FF1 FR.CL. w/.5" Pin Hole
Clutch Diameter
7.09"
C to C Min
885 mm/ 35"
C to C Max
1310 mm/ 52"
Series
100
Category
4 (47HP)
Cross References:
Replaces:
CS53514RB
DRIVELINE
ECC5383RB
EDCOR
00768468B
RHINO
826-022C
LAND PRIDE
Fits the following makes and models:
Bondioli & Pavesi 100 Series: Size 5
