Details

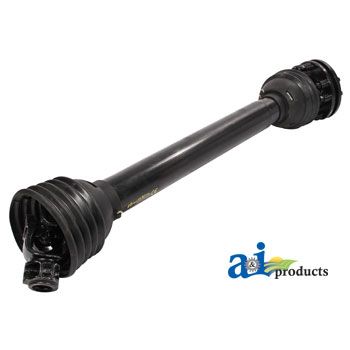

100 Series pull/tow Driveline with Friction Clutch. Driveline minimum C-to-C length: 35" (885 mm),
Maximum C-to-C length: 52" (1310 mm), Total collapsed length: 45" (1140 mm). Driveline is size 5 and
rated as a category 4 (47 hp). Tractor end: 1-3/8 6 Spline, Implement end: 1-3/8" 6 spline FF1
friction clutch. Clutch diameter is 7.09" Fits Kodiak Rotary Cutters.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Replaces
88609
Size
5
Total Collapsed Length
1140 mm/ 45"
Tractor
1 3/8" -6
Implement
1 3/8" - 6 SPL. FF1 FR.CL.
Clutch Diameter
7.09"
C to C Min
885 mm/ 35"
C to C Max
1310 mm/ 52"
Type
Pull/Towed
Series
100
Category
4 (47HP)
Cross References:
Replaces:
CS5094E
MISCELLANEOUS
CS5110E
MISCELLANEOUS
CS53514
DRIVELINE
ECC5383
EDCOR
PM14106546
DRIVELINE
111-60S
DRIVELINE
14106546
DRIVE-LINE
50034235
BUSH HOG
50034236
BUSH HOG
Crossed From:
AB5091090
TISCO
W14106546DS
CASE/IH
76742
BUSH HOG
88609
MISCELLANEOUS
Fits the following makes and models:
Bush Hog ROTARY CUTTER: SQ7
Bush Hog ROTARY CUTTER: SQ72
Bush Hog ROTARY CUTTER: SQ84
Bush Hog ROTARY CUTTER: 12
Bush Hog ROTARY CUTTER: 305
Bush Hog ROTARY CUTTER: 306
Bush Hog ROTOR TILLER: RTH
John Deere ROTARY CUTTER: 603
John Deere ROTARY CUTTER: 613
John Deere ROTARY CUTTER: 616
John Deere ROTARY CUTTER: 717
King Kutter ROTARY CUTTER: L60-HD
King Kutter ROTARY CUTTER: L72 RD
King Kutter ROTARY CUTTER: P60-HD
King Kutter ROTARY CUTTER: P72 RD
Kubota ROTARY CUTTER: LM378
Kubota ROTARY CUTTER: L360
Kubota ROTARY CUTTER: L366
Land Pride ROTOR TILLER: 25-34-50
Maletti ROTOR TILLER: KZ80 SERIES
Rhino ROTARY CUTTER: CY60
Rhino ROTARY CUTTER: CY72
Rhino ROTARY CUTTER: SE6
Rhino ROTARY CUTTER: SE7
Woods ROTARY CUTTER: 600
Woods ROTARY CUTTER: 72
Woods ROTARY CUTTER: 80
Bondioli & Pavesi 100 Series: Size 5
