Details

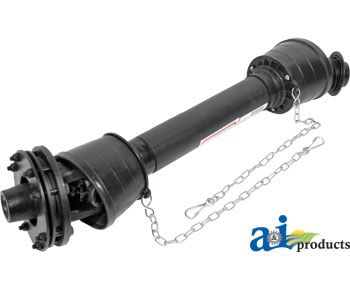

Rotary tiller driveline with friction disc clutch. Driveline rated as a category 3 (35 hp), 100
series. Driveline C-to-C length: 20" (510 mm), Max C-to-C length: 29.375" (746 mm), Total collapsed
length: 29.37" (746 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/8" 6 spline 6" 2 disc
clutch. Fits King Kutter Rotary Tillers.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size
4
Total Collapsed Length
746 mm/ 29.37"
Tractor
1 3/8" -6
Implement
1 3/8" - 6 spl. 2 disc clutch
Clutch Diameter
6"
C to C Min
510 mm/ 20"
C to C Max
750 mm/ 29.375"
Series
100
Category
3 (35HP)
Cross References:
Replaces:
147122
KING KUTTER
Fits the following makes and models:
Bondioli & Pavesi 100 Series: Size 4
