Details

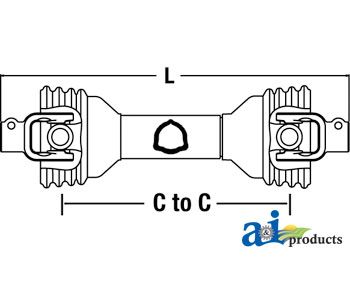

New Driveline with quick disconnect yokes. The minimum C-to-C length is 48" (1210 mm). The maximum
C-to-C length is 75" (1910 mm). The driveline has a total collapsed length of 55" (1410 mm). The
tractor and implement ends are 1-3/8" - 6 Spline. Driveline is rated category 2 (20 hp), series
100. NOTE: It may be necessary to cut this driveline to length. Verify the length by ensuring that
sufficient overlap of the drive tubes exists in all working positions without the possibility of
bottoming out.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size
2
Total Collapsed Length
1410MM/ 55"
Tractor
1 3/8" - 6
Implement
1 3/8" - 6
C to C Min
1210 MM/ 48"
C to C Max
1910 MM/ 75"
Series
100
Category
2 (20HP)
Cross References:
Replaces:
PM14046248
JOHN DEERE
14046248
DRIVE-LINE
14046260
DRIVE-LINE
Crossed From:
SW06360
JOHN DEERE EDI
W14046248DS
CASE/IH
Fits the following makes and models:
Bondioli & Pavesi 100 Series: Size 2
Additional Information
| shipping_weight | 24.2000 |
|---|
