BP112100101 - Complete Regular Shafts

Qty in Stock: 6

$513.80


Is this the correct part for your application? Check the Part Diagrams.
Details

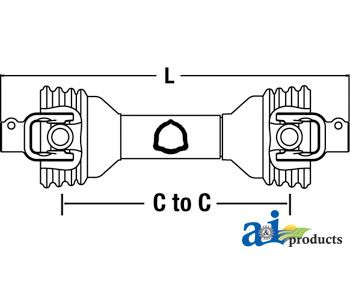

Complete Driveline. Minimum C-to-C Length: 48" (1210 mm), Maximum C-to-C Length: 75" (1910 mm), Total Collapsed Length: 55" (1400 mm). Tractor end: 1-3/8" - 6 Spline. Implement end: 1-3/8" - 6 Spline. Replaces: Bondioli & Pavesi No. BP112100101. NOTE: It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out. Fits Bondioli & Pavesi 100 Series: Size 1.
•  It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Replaces
Bondioli Part No: BP112100101
Size
1
Total Collapsed Length
1400MM/ 55"
Tractor
1 3/8" - 6
Implement
1 3/8" - 6
C to C Min
1210 MM/ 48"
C to C Max
1910 MM/ 75"



Cross References:

Crossed From:
SW06328
JOHN DEERE EDI



Fits the following makes and models:

Bondioli & Pavesi 100 Series: Size 1
Additional Information
shipping_weight 17.1900
