700715576 - Blade, Disc Mower, Lh

700715576 - Blade, Disc Mower, Lh is available for purchase in increments of 25

Qty in Stock: 1075

$2.10


Is this the correct part for your application? Check the Part Diagrams.
Details
New twisted disc mower blade, left hand rotation. Blade measures 1.890" (48 mm) x 4.252" (108 mm), .728" (18.5 mm) bolt holt, .157" (4 mm) thickness, 18 degrees of twist. Type 9. Fits Case-IH and Hesston headers and mower conditioners.
•  Sold In Multiples Of 25

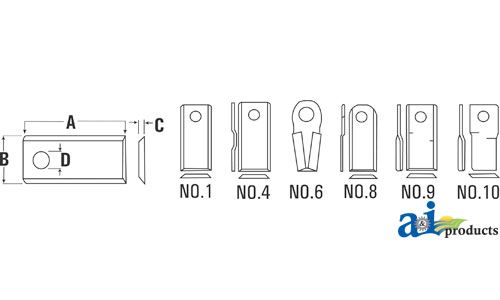

Dim A (1)
4.252" / 108 mm
Dim B (2)
1.890" / 48 mm
Dim C (3)
.157" / 4 mm
Dim D (4)
.728" / 18.5 mm
Twist
18 Degree
Type
N0. 9 LH



Cross References:

Crosses To:
700712889
TISCO
Replaces:
86625674
CASE/INTERNATIONAL HAR.



Fits the following makes and models:

Case-IH HEADER: 725
Case-IH HEADER: 8850
Case-IH MOWER CONDITIONER: DC515
Case-IH MOWER CONDITIONER: 8309
Case-IH MOWER CONDITIONER: 8312
Case-IH MOWER CONDITIONER: 8315
Hesston HEADER: 8070
Hesston MOWER CONDITIONER: 1320
Hesston MOWER CONDITIONER: 1340
Hesston MOWER CONDITIONER: 1360
Hesston MOWER CONDITIONER: 1365
Additional Information
shipping_weight 0.3000
